Effective Groove Size (L×W)(mm): 140×12.5
Measurement Range: 0-25μm
Dimension(mm): 175×65×13
Division Value: 2.5
Unit: H &μm
Number of Grooves: 2
Introduction:

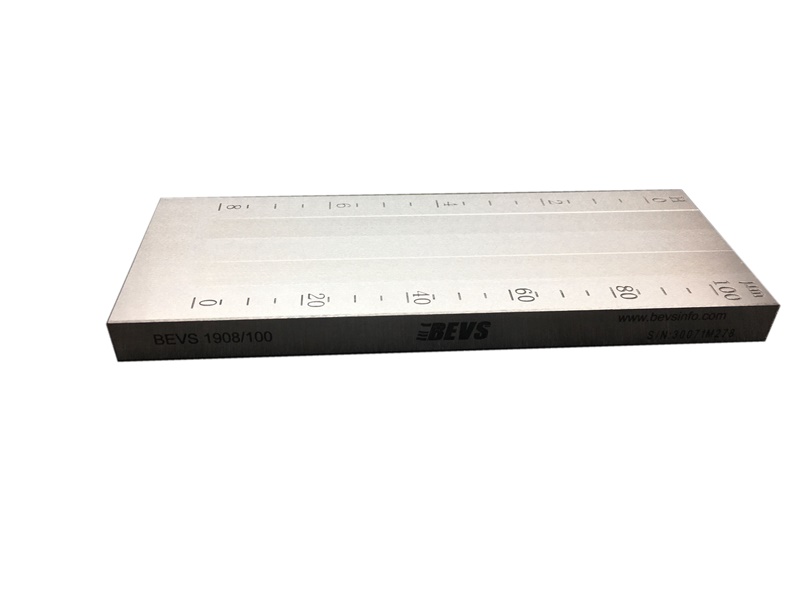

BEVS Fineness of Grind Gauge is manufactured according to the GB/T1724, ISO1524 standard.
Technical Specification:
Material: Stainless steel
A scraper is included.
Accessory: BEVS1907 Scraper For Fineness of Grind Gauge
Order Information:
Item | Order No. | Effective Groove Size (L×W) (mm) | Measurement Range(μm) | Dimension(mm) | Division Value | Unit | Number of Grooves | ||
Single Channel Grind Gauge | 1903/25 | 140×12.5 | 0-25 | 175×65×13 | 2.5 | μm | 1 | ||
1903/50 | 140×12.5 | 0-50 | 175×65×13 | 5 | μm | 1 | |||
1903/100 | 140×12.5 | 0-100 | 175×65×13 | 10 | μm | 1 | |||
Double Channel Grind Gauge | 1908/25 | 140×12.5 | 0-25 | 175×65×13 | 2.5 | H &μm | 2 | ||
1908/50 | 140×12.5 | 0-50 | 175×65×13 | 5 | H &μm | 2 | |||
1908/100 | 140×12.5 | 0-100 | 175×65×13 | 10 | H &μm | 2 | |||
Wide Single Channel Grind Gauge | 1906/25 | 140×37 | 0-25 | 175×65×13 | 2.5 | H &μm | 1 | ||
1906/50 | 140×37 | 0-50 | 175×65×13 | 5 | H &μm | 1 | |||
1906/100 | 140×37 | 0-100 | 175×65×13 | 10 | H &μm | 1 | |||
Triple Channel Grind Gauge | 1905 | 140×12.5 | 0-25/50/100 | 175×85×13 | 2.5/5/10 | μm | 3 | ||
*A scraper is included
