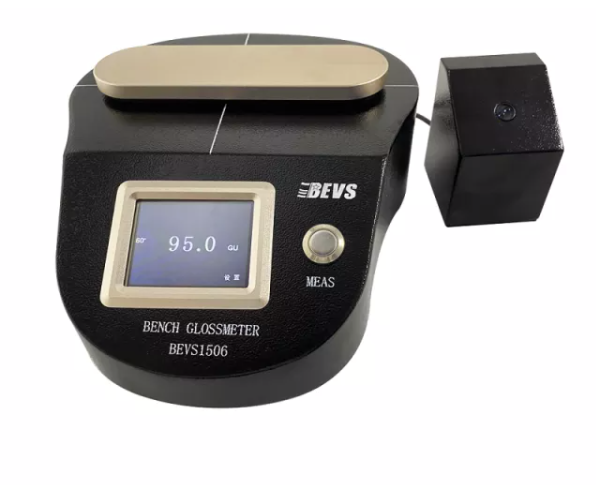

Bevs BEVS 1506 Bench glossmeter (60°, 0-2000GU)

Angle:60°

Range:0-2000GU

Repeatability: ±0.5GU（0-199.9GU)

Precision:1GU

Measurement area:2x2mm

Display resolution:320×240

Control:Touch screen with one key measurement

Memory:3000 readings

Operation temperature: -10℃～40℃

Port:USB

Dimension:220×190×85mm (L×W×H）

Weight:3kg

Accessories:

BEVS1506/P/001 Standard Calibration

BEVS1506/P/002 USB Data cable

BEVS1506/P/003 Footswitch

BEVS1506/P/004 Optical Sensor Switch

Introduction:

This small, portable instrument is made for measuring the gloss of curved surface, samll pieces, specially shaped surface of small products, application in the area of coatings, automobiles, toys, furniture, plastics, banknotes, teeth, ceramics etc.

Features:

Automatic calibration

One button operation

Colorful touch screen displaying readings, statistics and calibration procedure status.

Calibration can be done automatically within one second

Up to 3000 readings stored.

Convenient measurement with infrared sensor switch

Footswitch available for simple measurement

Standard:

ASTM D523, DIN 67530

Order Information:

BEVS 1506 Bench Glossmeter

Delivery with 1 x calibration tile, 1 x USB cable, 1 x footswtich and 1 x  sensor switch.

Manual
