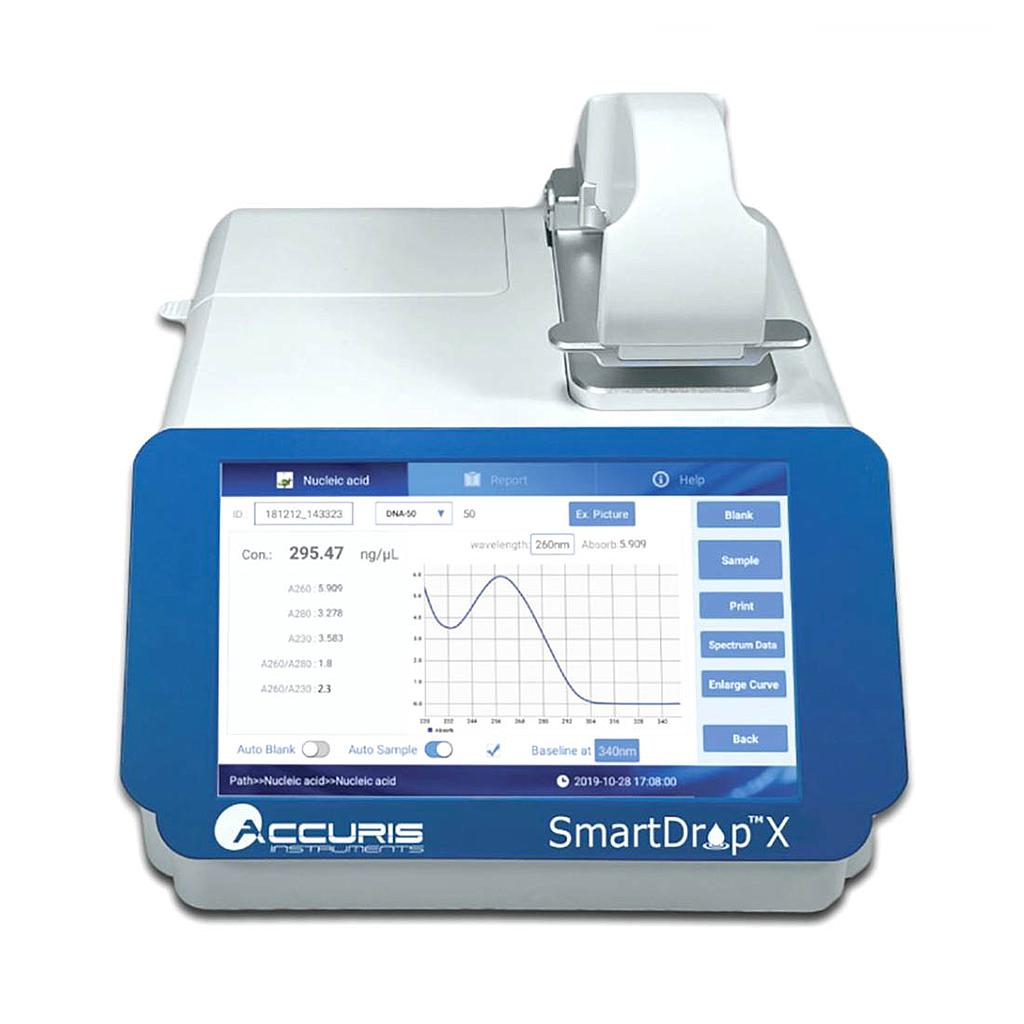

Benchmark Accuris™SmartDrop Nano Spectrophotometers SmartDrop™ X Nano Spectrophotometer (230V)

Product Features:

European Plug Model

Full-Spectrum Absorbance Scans from 200 to 800nm

Quickly Calculates and Displays 260/280 and 260/230 Ratios

Long-Life Xenon Lamp with Precision Monochromator

Auto-Ranging Path Lengths of 0.2mm and 1.0mm

Detect Up to 4,500 ng/µl of dsDNA Without Dilution

Specifications

Display: 7-inch touch screen

Minimum sample size: 0.5µl - 2.0µl

Path length: 0.2mm, 1.0mm

Light source: Xenon Flash Lamp

Detector: 2048 Element Linear Silicon CCD Array

Wavelength: 200 - 800nm (1nm steps)

Absorbance range: 0.04 - 90 A (10mm equivalent)

Absorbance precision: 0.003 A

Lower limit of detection: dsDNA: 2ng/µl; BSA: 0.1mg/ml

Upper limit of detection: dsDNA: 4,500ng/µl; BSA: 135mg/ml

Detection time: < 5 seconds

Communication ports: USB for data export

Voltage input: DC 24V, 2A

Power: 25W

Dimensions (WxDxH): 20.8 x 28.0 x 18.6 cm / 8.2 x 11.0 x 7.3 in.

Weight: 2.8 kg / 6.2 lbs

Cuvette OD600 detection:

Absorbance range: 0.0 - 4.0 A

Absorbance stability: [0,3) ≤ 0.5%, [3,4) ≤ 2%

Absorbance repeatibility: [0,3) ≤ 0.5%, [3,4) ≤ 2%

Absorbance precision: [0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%
