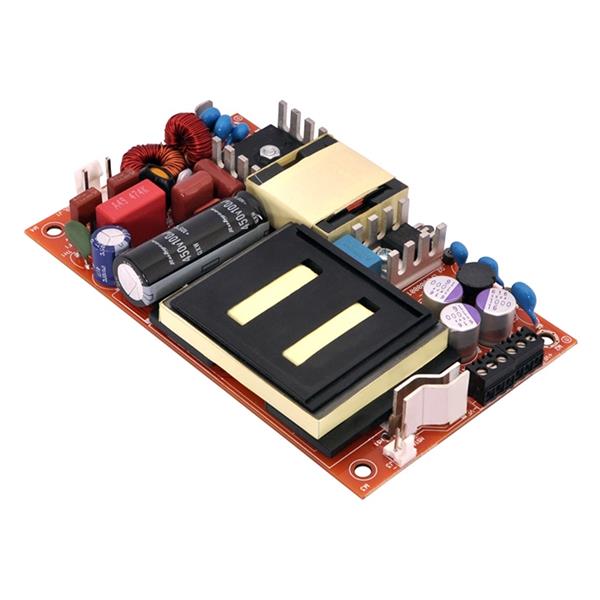

Bel Power Solutions MBC275-1024L Switching Power Supplies 275W 100-240Vin 24Vout 11.46A HEADER

Width: 76.2 mm

Height: 19.05 mm

Length: 127 mm

Industry: Medical

Approvals: EN60601-1, IEC60601-1, UL60601-1

Compliance: EN60601-1, IEC60601-1, UL60601-1

Efficiency: 92 %

Unit Weight: 200 g

Output Power: 275 W

Input Voltage: 80 VAC to 264 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 10.41 A

Output Voltage-Channel 1: 24 VDC
