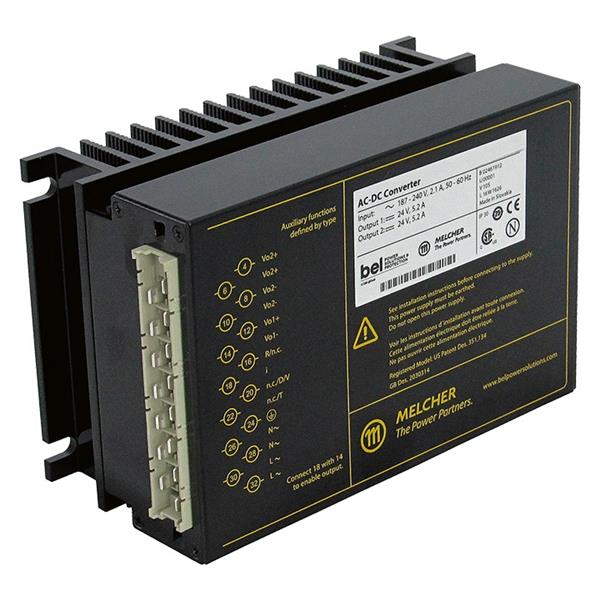

Bel Power Solutions LK4601-9ER Switching Power Supplies AC-DC CONVERTER

Width: 111 mm (4.37 in)

Height: 60 mm (2.362 in)

Length: 168 mm (6.614 in)

Industry: Industrial

Approvals: IEC/EN60950-1, UL/CSA 60950-1

IP Rating: IP30

Compliance: IEC/EN 60950-1, UL/CSA 60950-1

Efficiency: 86 %

Output Power: 150 W, 280 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 6 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: - 40 C to + 71 C

Maximum Operating Temperature: + 71 C

Minimum Operating Temperature: - 40 C
