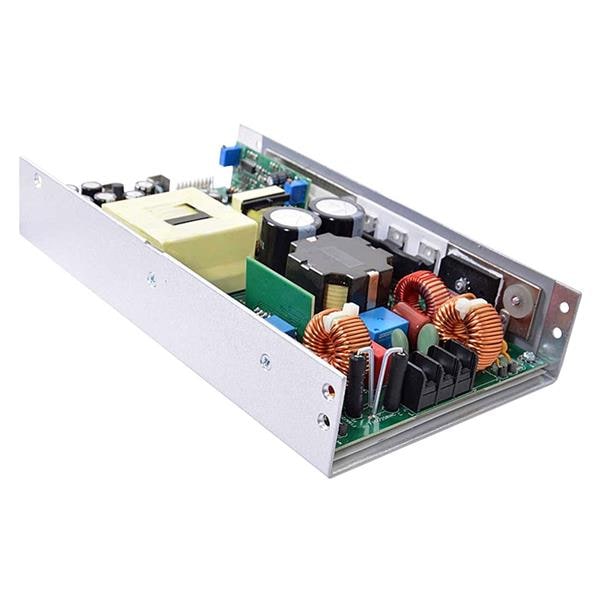

Bel Power Solutions ABC800-1T48 AC-DC Converter AC-DC Power Supply Open Frame 800 W

Width: 216 mm (8.504 in)

Height: 41 mm (1.614 in)

Length: 127 mm (5 in)

Industry: Medical, Industrial

Approvals: IEC/EN62368-1, UL/CSA62368-1

Compliance: IEC/EN62368-1, UL/CSA62368-1

Efficiency: 88 %

Unit Weight: 1.1 kg

Output Power: 800 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 390 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kV

Number of Outputs: 1 Output

Power - Convection: 800 W

Power - Forced Air: 800 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 16.66 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
