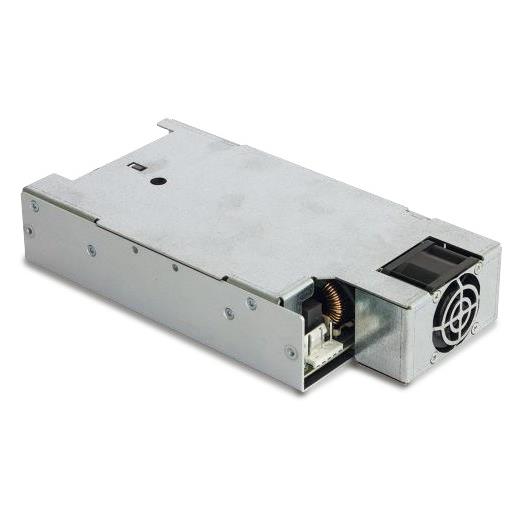

Bel Power Solutions ABC601-1T48-S AC-DC Converter POWER SUPPLY;ABC601-1T48-S;AC-DC;IN 100to240V;OUT 48V;12.5A;600W;FRONT FAN COVER;4.21"x8.11"x1.61";SCREW TERMINAL

Width: 107 mm (4.213 in)

Height: 41 mm (1.614 in)

Length: 206 mm (8.11 in)

Industry: Medical, Industrial

Approvals: CB, CE, CSA, IEC, UL

Dimensions: 206 mm x 107 mm x 41 mm

Efficiency: 94 %

Output Power: 600 W

Input Voltage: 85 VAC to 305 VAC, 170 VDC to 300 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 440 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC, 5.66 kVDC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 12.5 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 20 C
