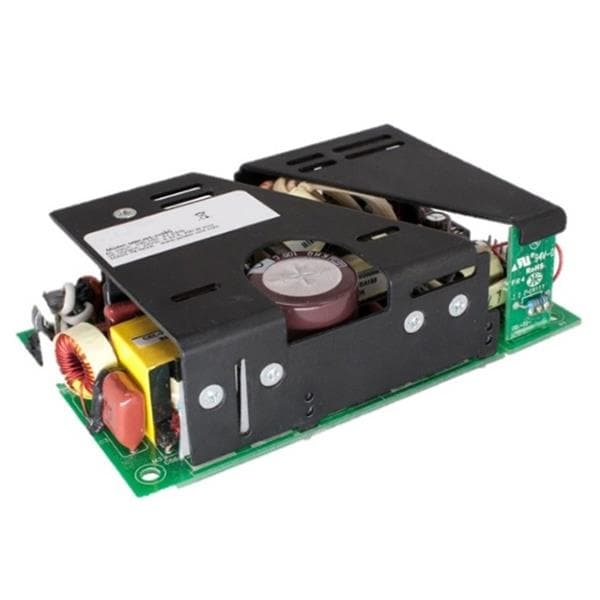

Bel Power Solutions ABC201-1T30G Switching Supplies 200W 30V 5.33A SCREW TERMINAL

Width: 76.2 mm (3 in)

Height: 38.1 mm (1.5 in)

Length: 127 mm (5 in)

Industry: Industrial

Approvals: EN60950-1, UL60950-1

Compliance: EN60950-1, UL60950-1

Unit Weight: 325 g

Output Power: 200 W

Input Voltage: 90 VAC to 264 VAC, 120 VDC to 390 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4.242 kVDC

Number of Outputs: 1 Output

Power - Convection: 160 W

Power - Forced Air: 200 W

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 5.33 A

Output Voltage-Channel 1: 30 VDC
