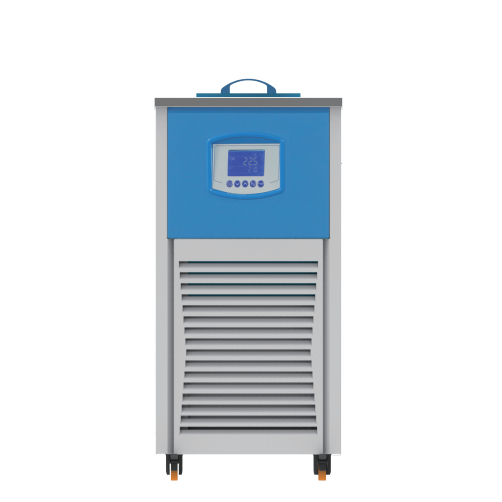

BEING BWR-20A Circulating Chiller (20L)

Storage Tank maximum capacity (L): 20

No-load minimum temperature(°C): -20°C

Best operating temperature(°C): ≤25°C

Environmental humidity(%RH): ≤65%RH

Temperature accuracy(°C): ±0.5°C

Machine noise: ≤60dB

Eco-friendly Refrigerant: R404A

Machine power (W): 1650W

Refrigeration unit current (A): 7.2

Cooling capacity at -20°C (kw): 3.7

Adaptation Steam Turbine (L): 10L*2

Power requirements: 220V/50HZ

Pump

Maximum flow rate (L / min): 40

Maximum head (m): 3.5m

Operating pressure (bar): 0.5

Inlet/Outlet pipe diameter (mm): φ 12

Size

Weight (Kg): 105

Liquid tank opening / depth (mm): φ 300mm*300mm

Dimensions (mm): 450*530*830

Controller

Controller, monitor: LCD

Computer interface: R485

Security Features

Protection reminders: delay, leakage, overcurrent, overvoltage

Low liquid level alarm: Yes
