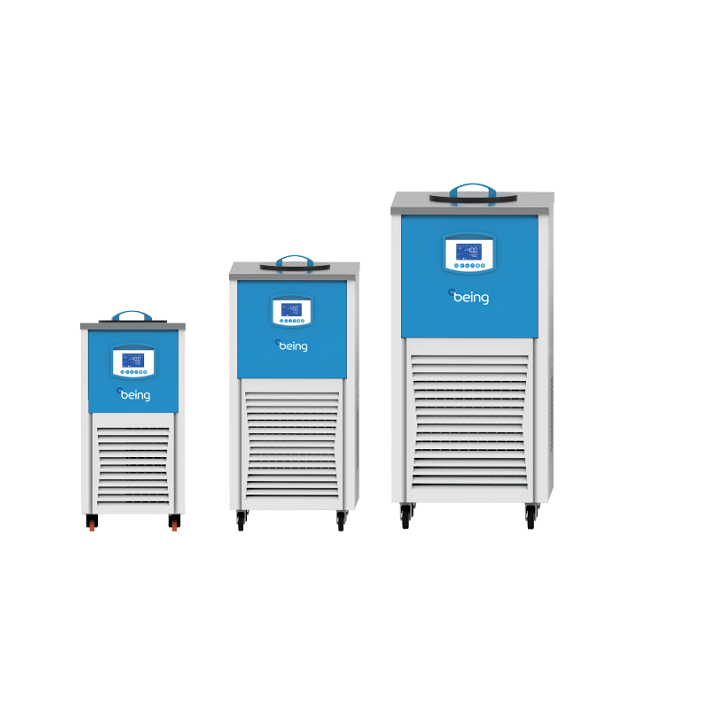

BEING BR-10HC Cooling/Heating Recirculating Chiller (-40~40°C,10L)

Storage tank maximum capacity (L): 10

Temperature range: -40~40°C

Ambient temperature range: +5~30°C

Temperature accuracy: ±0.3°C

Cooling capacity at 20°C (kw): 2.2

Cooling capacity at 0°C (kw): 1.76

Cooling capacity at -20°C (kw): 1

Refrigerant: R404A

Security features: Delay, leakage, overcurrent, overvoltage

Total power (W): 3100

Heating power (W): 1400

Power requirements: AC 220V±10%/50Hz

Pump flow max.(L/min): 17

Maximum head (m): 2.5

Inlet/Outlet pipe diameter (mm): Φ20

Noise level: ≤55

Liquid tank opening/depth (mm): Φ 250x250

Dimensions WxDxH(mm) (include caster): 400x590x790
