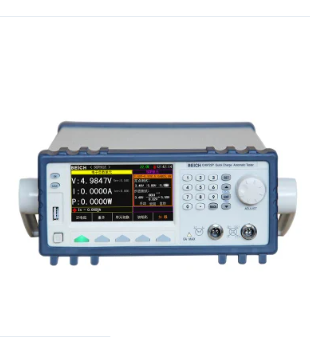

Beich CH9733P+ Quick Charge Automatic Tester (0~150V, 0.1mA~30A, 300W)

Input Power: 300W

Input Voltage: 0~150V

Input Current: 0.1mA~30A

Voltage Accuracy:

Measurement Range / Accuracy / Resolution

0-15V / ±(0.05%+0.03%FS) / 0.1 mV

15V-150V / ±(0.05%+0.03%FS) / 1 mV

Current Accuracy:

Measurement Range / Accuracy / Resolution

0-3A / ±(0.05%+0.05%FS) / 0.01mA

3-30A / ±(0.05%+0.05%FS) / 0.1mA

Fast charge protocol part

D+D- voltage: BC1.2/APPLE 2.4A

PD protocol: PD2.0/PD3.0/PPS

QC agreement: QC2.0/QC3.0/QC4+

MTK protocol: PE1.1/PE2.0

Samsung agreement: AFC

Huawei agreement: FCP/SCP

OPPO agreement: VOOC/SVOOC

VIVO agreement: VSFCP

Spreadtrum agreement: SFCP

Function

CC line automatic turnover: Automatic rollover of CC1/CC2

D+/D- Auto flip: D+/D- Auto flip

E-marker chip: internally installed

Ripple test: YES

Other

Outline dimension: 215mm*88mm*350mm

Power requirement: 198-242VAC 99V-121VAC 47.5-63Hz

Power consumption: ≤40VA
