EASYLASER E420 Laser Shaft Alignment System (3m, 0.01 mm)

Name: EASYLASER E420 Laser Shaft Alignment System (3m, 0.01 mm)
Brand: EASYLASER

ManufacturerEASYLASER(View more products from this manufacturer)

ModelE420

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

- System
+ Weight (complete system): 6.3 kg [13.9 lbs]
+ Carrying case WxHxD: 500x415x170 mm [19.7”x16.3”x6.7”]
- Measuring units M / S
+ Type of detector: TruePSD 20 mm [0.78”]
+ Wireless communication: Class I Bluetooth® wireless technology
+ Operating time: >4 h
+ Resolution: 0.01 mm [0.5 mils]
+ Measuring errors: ±1% +1 digit
+ Measurement range: Up to 3 m [10 feet]
+ Type of laser: Diode laser
+ Laser wavelength: 635–670 nm
+ Laser class: Safety class II
+ Laser output: <1 mw="" br=""> + Electronic inclinometer: 0.1° resolution
+ Thermal sensors: -20–60 °C
+ Environmental protection: IP class 65
+ Temperature range: -10–50 °C
+ Housing material: Anodized aluminium / ABS plastics
+ Dimensions WxHxD: 69.0x61.5x41.5 mm [2.72”x2.42”x1.63”]
+ Weight: 176 g [6.2 oz]
-Display unit
+ Type of display/size: VGA 5.7” colour screen, backlit LED
+ Displayed resolution: 0.01 mm / 0.5 thou
+ Internal battery (fixed): Heavy duty Li Ion chargeable
+ Operating time Approx: 30 hours (at typical user cycle)
+ Temperature range: -10–50 °C
+ Connections: USB A, Charger
+ Wireless communication: Class I Bluetooth® wireless technology
+ Internal memory: >2000 measurements can be saved
+ Help functions: Calculator, Unit converter
+ Environmental protection: IP class 65
+ Housing material: PC/ABS + TPE
+ Dimensions WxHxD: 250x175x63 mm [9.8”x6.9”x2.5”]
+ Weight: 910 g [2.0 lbs]
- Cable
+ Charging cable (splitter cable): Length 1 m [39.4”]
- Brackets etc.
+ Shaft brackets
Type: V-fixture for chain, width 18 mm [0.7”].
Shaft diameters: 20–450 mm [0.8”–17.7”]
Material: anodised aluminium
+ Rods Length: 120 mm, 60 mm [4.72”, 2.36”] (extendable)
Material: Stainless steel
- EasyLink™ Data base software
+ System requirements Windows® XP, Vista, 7. For the export functions, Excel
2003 or newer must be installed on the PC.

A complete system contains:
1 Measuring unit M
1 Measuring unit S
1 Display unit
2 Shaft brackets with chains
2 Extension chains
4 Rods 120 mm [4.72”]
4 Rods 60 mm [2.36”]
1 Measuring tape 3 m [9.8’]
1 Charger (100–240 V AC)
1 DC split cable for charging
1 DC to USB adapter, for charging
1 Quick reference manual
1 USB memory with manuals and EasyLink™ PC software
1 CD with documentation
1 Carrying case

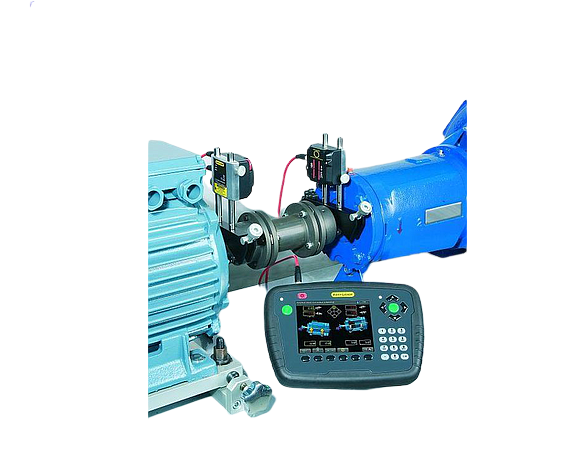

Easy-Laser® is used to align pumps and motors for all types of installations in a variety of industries. Correctly set-up and aligned machines are necessary to reduce energy consumption and achieve optimum service life. Easy-Laser® E420 sets a new standard in entry level laser systems for shaft alignment.

Easy to learn and to use.
Compact measuring units for use on most machine designs.
All wireless units (Built-in Bluetooth® technology and integrated rechargeable battery).
Large, easy to read 5.7"colour display.
Programs with both symbols and text = easy to understand.
True PSD technology with unlimited resolution.
Dual PSD, dual laser beams and dual inclinometers for superior control and accuracy.
3 year warranty gives assurance.
Fast service and support. 48-hours Express service if necessary.
Low overall costs during the entire lifecycle of the product, for example calibration, accessories, etc.
