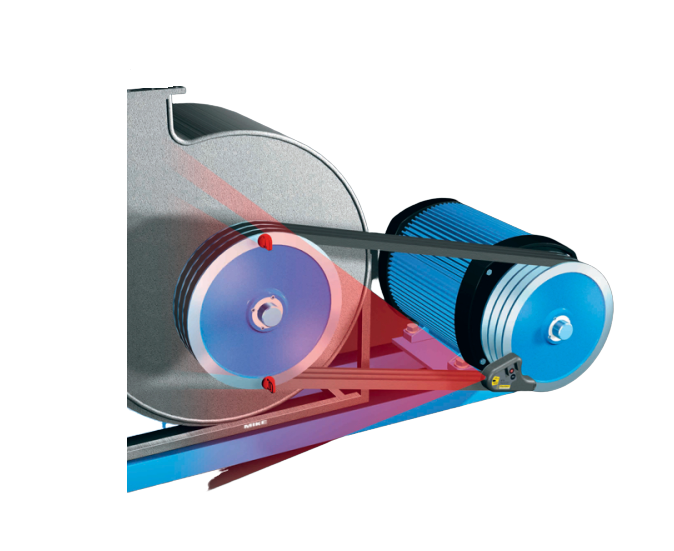

EASYLASER BEGAD90 pulley alignment laser

Laser transmitter
Sheave diameters: B 60 mm [2.5”] and larger
Sheave thickness: Not depending on sheave thickness
Beam angle: 60°
Measurement distance: 10 m [33 feet]
Battery type: 1 x R6 (AA) 1.5 V
Battery operation: >8 hours continuously
Laser class: 2
Output power: <1 mw="" br=""> Laser wavelength: 635–670 nm
Housing material: ABS plastics/Hard anodized aluminium
Dimensions: WxHxD: 145x86x30 mm [5.8”x3.4”x1.1”]
Weight: 0.27 kg [8.6 oz]
Targets: 2 pcs. magnet targets
Feature: Because of its light weight it can be mounted on nonmagnetic sheaves with double sided adhesive tape.
Calibration: The laserline generated by the tool is calibrated parallel to the reference surface. Accuracy: Offset < 0.2 mm [0.008”], Parallelity < 0.05°

A COMPLETE SYSTEM CONTAINS:
1 Laser transmitter
2 Targets
1 Manual
1 Padded cover
