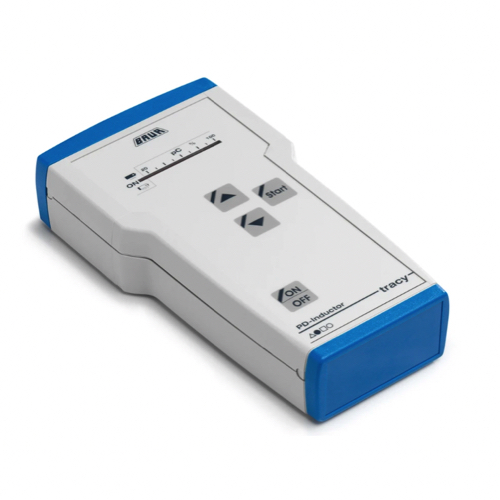

BAUR tracy Partial Discharge Inductor (DC 4.8 – 12 V, 800 mA)

Technical data

General:

Pulse width: Approx. 25 ns

Pulse rate: 20 ms – 5.1 s (in 20-ms steps)

Battery type: Ni-MH rechargeable battery pack

Battery life: Approx. 20 h

Charging time: Approx. 4 h

Charger:

Power supply: 100 – 240 V, 50/60 Hz

Output voltage: DC 4.8 – 12 V, 800 mA

Ambient temperature (operational): -10°C to +50°C

Storage temperature: -20°C to +60°C

Relative humidity: Non-condensing

Dimensions (W x H x D): Approx. 110 x 213 x 42 mm

Weight: Approx. 0.55 kg

Degree of protection: IP54

Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Standard delivery:

Tracy partial discharge inductor in transport case incl.:

Rechargeable battery pack

Charger incl. country-specific adapter

Induction cable, blue

User manual

Datasheet
