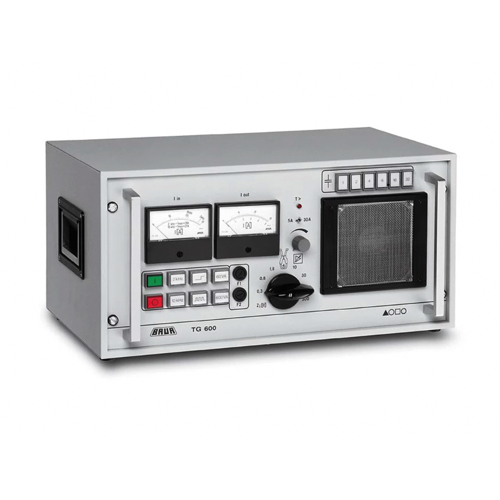

BAUR TG 600 Audio Frequency Transmitter (30A)

Tracing and cable fault location:

Output power: On 2 levels; continuously adjustable on each power level

At 2 kHz: 60 VA / 600 VA

At 10 kHz: 45 VA / 450 VA

Max. output current: 30 A

Frequencies: Switchable between 2 frequencies*: * Other frequencies on request

2 kHz ±0.1%

10 kHz ±0.1%

Output impedance: On 8 levels: 0.3 / 0.8 / 1.8 / 4 / 10 / 30 / 100 / 300 Ω

Display:

Output current Iout in A

Primary current of the output transformer Iin in A

Overtemperature display

Output: Pole terminals on the back of the device

General:

Power supply:

110 – 120 V, 50/60 Hz

220 – 230 V, 50/60 Hz

240 V, 50/60 Hz

Power consumption: Max. 2,200 W

Device protection: Thermal overload protection

Dimensions (W x H x D): Approx. 505 x 255 x 300 mm

Weight: Approx. 38 kg

Ambient temperature (operational): -20°C to +40°C

Safety and EMC: CE compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Standard delivery

▪ TG 600 audio frequency transmitter

▪ Mains supply cord, 2.5 m

▪ Earth cable, 3 m, with earth terminal

▪ Connection cable, 3 m, with connection clips

▪ User manual
