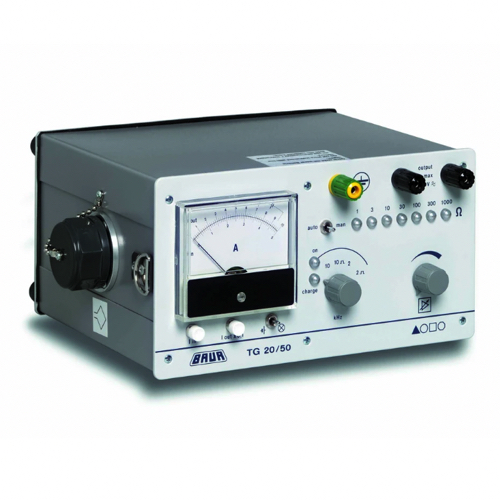

BAUR TG 20/50 Audio Frequency Transmitter (8A)

Tracing and cable fault location:

Output power:

In mains operation: 0 – 50 VA

In battery mode: 0 – 20 VA

Max. output current: 8 A

Frequencies: Switchable between 2 frequencies*:

2 kHz ±0.1% distortion factor ≤1.5% @ 4 VA

10 kHz ±0.1% distortion factor ≤3% @ 4 VA

Output impedance: On 7 levels: 1 / 3 / 10 / 30 / 100 / 300 / 1,000 Ω Automatic or manual adjustment

General:

Power supply:

Mains voltage:

110 – 120 V, 50/60 Hz

220 – 230 V, 50/60 Hz

240 V, 50/60 Hz

Integrated batteries: 12 V, 12 Ah

External supply: DC 12 – 24 V (reverse polarity protection)

Battery life: Approx. 3.2 h @ 20 VA

Charger (integrated): Overcharge protection – when connected to the mains, the batteries are charged in each operating mode Deep discharge protection: Device switch off in the event of deep battery discharge

Dimensions (W x H x D): Approx. 290 x 130 x 250 mm

Weight: Approx. 9.5 kg

Ambient temperature (operational): -20 to +50°C

Safety and EMC: CE compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Standard delivery

▪ TG 20/50 audio frequency transmitter

▪ Carrying strap, adjustable

▪ Mains supply cord, 2.5 m

▪ Earth cable, 3 m, with earth terminal

▪ Connection cables, red and black, touch-proof, 2 m each,

with connection clips

▪ User manual
