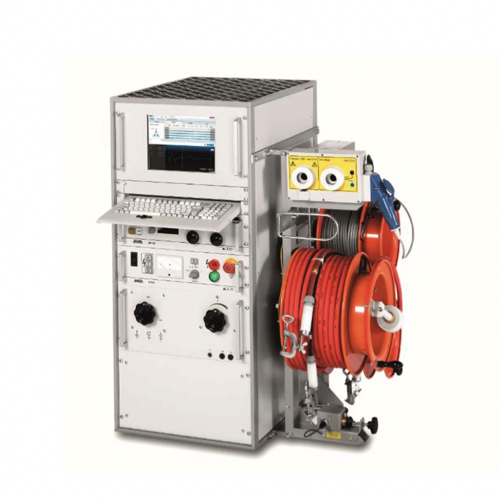

BAUR Syscompact 4000 Mobile Cable Fault Location System (220 – 230 V, 50/60 Hz)

Surge voltage generator:

Surge voltage ranges: 0 – 8 kV, 0 – 16 kV, 0 – 32 kV

Options SZ 1000/SZ 1600: 0 – 4 kV

Option SZ 2500: 0 – 3 kV

Surge energy:

SSG 1100: 1,100 J

with option SZ 1000: 880 J

with option SZ 1600: 1,480 J

with option SZ 2500: 2,290 J

Option SSG 1500: 1,540 J

with option SZ 1000: 980 J

with option SZ 1600: 1,580 J

with option SZ 2500: 2,350 J

Option SSG 2100: 2,050 J

with option SZ 1000: 1,110 J

with option SZ 1600: 1,710 J

with option SZ 2500: 2,420 J

Surge sequence: 10 or 20 pulses/min, single surge

Option SSG 1500: 20 or 30 pulses/min, single surge

DC voltage: 0 – 32 kV

Max. output current (in DC mode):

560 mA (0 – 8 kV)

Option SSG 1500/SSG 2100: 850 mA (0 – 8 kV)

IRG 4000 time domain reflectometer:

The technical data of the time domain reflectometry and insulation resistance measurement are provided in the data sheet for the IRG 4000 time domain reflectometer and BAUR Software 4 for cable fault location.

System:

Power supply: 220 – 230 V, 50/60 Hz

Options:

110 – 120 V, 50/60 Hz (with external auto transformer)

240 V, 50/60 Hz (with conversion kit for mains supply)

Ambient temperature (operational): 0°C to +50°C

Extended temperature range: -20°C to +60°C Limitation of performance data possible

Storage temperature: -40 to +60°C

Dimensions (W x H x D): Approx. 935 x 1,145 mm x 775 mm (incl. KTG M3 cable drum rack)

Weight: From 195 kg (depending upon equipment)

Degree of protection: IP22

Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Standard delivery

BAUR Syscompact 4000 cable fault location system:

▪ IRG 4000 time domain reflectometer incl. pre-installed BAUR Software 4

(cable fault location)

▪ Uninterruptible power supply (UPS)

▪ PC keyboard

▪ Measuring cable (3 m)

▪ SA 32 SIM/MIM coupling unit

▪ SSG 1100 surge voltage generator

▪ SK 1D inductive coupler for ICM

▪ 19” rack, height 27 RU (1,200.15 mm), depth 700 mm

▪ KTG M3 cable drum rack with HV connection cable, mains supply cord

and earth cable (incl. earth terminal), each 25 m

▪ Contact monitoring of the earth terminal

▪ Jumper plug for external emergency off unit

▪ CS 2 HV coaxial connection sockets, 40 kV

▪ GR 40 earth rod

▪ User manual
