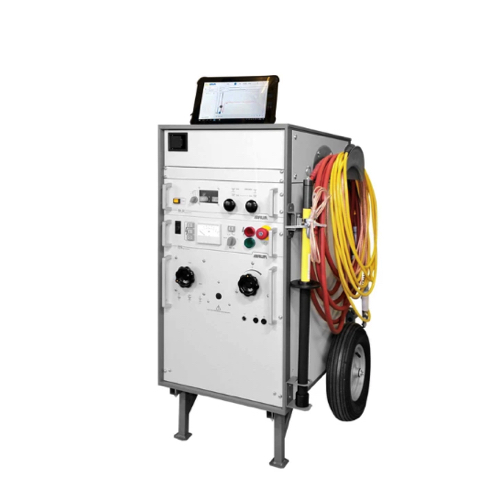

BAUR Syscompact 400 portable Simple And Safe Measurement (220 – 230 V, 50/60 Hz)

System:

Power supply: 220 – 230 V, 50/60 Hz

Options:

110 – 120 V, 50/60 Hz (with external auto transformer)

240 V, 50/60 Hz (with conversion kit for mains supply)

Ambient temperature (operational): -10°C to +50°C

Storage temperature: -20°C to +60°C

Dimensions (W x H x D):

With carrying handles (basic version): Approx. 745 x 815 x 750 mm

With heavy duty wheels: Approx. 775 x 1,185 x 935 mm

Weight: From 140 kg (depending upon equipment)

Degree of protection: IP22

Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Control of the IRG 400 via tablet or laptop (The figure is illustrative)

IRG 400 time domain reflectometer:

Measurement methods:

TDR Time Domain Reflectometry: 1- and 3-phase measurement

Step TDR: 1- and 3-phase measurement

SIM/MIM secondary/multiple impulse method

ICM impulse current method

Option: Decay method

Pulse voltage: 60 V

Pulse width: 30 ns – 10 µs

Voltage-proof up to 400 V, 50/60 Hz

Measurement category: CAT IV/600 V (Up to CAT IV/600 V in combination with the optional TDR connection cable)

Output impedance: 30 ohm – 2 kOhm

Input signal gain Dynamic range: 101 dB (-63 to +38 dB)

Display range: 10 m – 1000 km

Accuracy: 0.1% (relating to the measurement result)

Data rate: 400 MHz

Resolution: 0.1 m (at v/2 = 80 m/μs)

Velocity of propagation (v/2): 20 – 150 m/μs, adjustable

Control system:

Via tablet with BAUR BUI-F app

Via laptop with BAUR Software 4

Surge voltage generator:

Surge voltage ranges: 0 – 8 kV, 0 – 16 kV, 0 – 32 kV

Surge energy: 1,100 J

Option SSG 1500: 1,540 J

Option SSG 2100: 2,050 J

Surge sequence: 10 or 20 pulses/min, single surge

Option SSG 1500: 20 or 30 pulses/min, single surge

DC voltage: 0 – 32 kV

Max. output current (burn):

DC 560 mA (0 – 8 kV)

Option SSG 1500/SSG 2100: DC 850 mA (0 – 8 kV)

Standard delivery

▪ BAUR Syscompact 400 cable fault location system incl.

– IRG 400 time domain reflectometer

– SA 32 SIM/MIM coupling unit

– SSG 1100 surge voltage generator

– SK 1D inductive coupler for ICM

– 19” rack for Syscompact 400, height 21 RU (933.45 mm), depth

700 mm, incl. heavy duty wheels and handle

– 19” drawer for tablet or laptop

– HV connection cable, 10 m

– Earth cable, 10 m, with earth terminal

– Mains supply cord, 10 m

▪ Tablet with BAUR BUI-F app

or

Laptop with BAUR Software 4

▪ IRG connection cable, 3-phase, 10 m

▪ GR 40 earth rod

▪ User manual
