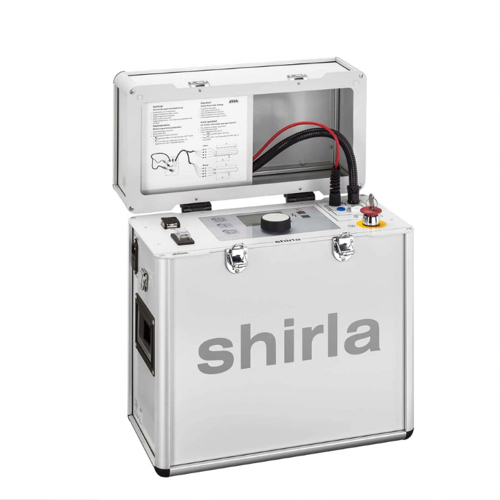

BAUR shirla Cable Sheath Testing And Fault Location Device (10 kVC)

Technical data

Measuring bridge (pre-location of cable sheath faults and faults due to earth contact)

Measurement method: 4-wire measuring bridge according to Murray or Glaser

Output voltage: DC 100 V – 10 kV

Max. output current: 50 mA

Accuracy: 0.5% relating to the measurement result

Number of definable cable sections: 50

Voltage and current limitation adjustable

Step voltage method (cable sheath fault pin-pointing)

Pulsed DC voltage: 100 V – 10 kV

4 selectable pulse patterns

Max. output current: 700 mA

General

Display: LCD with background lighting, screen resolution 320 x 240 pixels, Automatic brightness setting

Reporting:

Shown on display

Automatic export via USB interface (USB 2.0)

Data export format: Text file, bilingual: English, German

Power supply:

Mains voltage AC: 100 – 240 V, 50/60 Hz

Rechargeable battery: DC 12 V, 3.4 Ah

Max. power consumption: 200 VA

Max. discharge capacitance: 25 µF

Ambient temperature (operational): -20 to +50°C

Storage temperature: -40 to +60°C

Relative humidity: Non-condensing

Weight and dimensions (W x H x D):

Shirla: Approx. 17 kg; approx. 440 x 490 x 220 mm

Transport case for accessories: Approx. 5 kg; approx. 450 x 355 x 125 mm

Degree of protection: IP54 (in closed state)

Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Integrated battery

Battery type: Lead-acid battery 12 V, 3.4 Ah

Battery life: Approx. 45 min (in HV mode)

Charging time: Approx. 4 h

Cable and cable sheath testing

DC voltage: 0 – 10 kV

Output current:

10 mA @ DC 5 kV

5 mA @ DC 10 kV

Current indicator accuracy: ±10 μA

Resolution: 1 μA

Insulation resistance measurement: 0.01 MOhm to 1 GOhm

Voltage and current limitation adjustable

Standard delivery

▪ shirla sheath test and fault location device incl.

– HV connection cable, 4.5 m, fix mounted

– 4-wire bridge connection cable, 2.5 m, fix mounted

– Short-circuit cable, 1 m, 2 pcs

– G-clamps, 24 mm, 4 pcs

– Earth cable, 3 m, with earth terminal

– Transport case for accessories

– USB drive

– Carrying strap

– Mains supply cord, 2.5 m

– User manual
