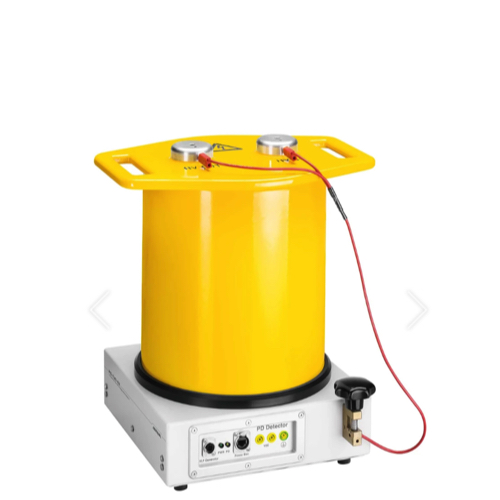

BAUR PD-TaD 80 Portable PD Diagnostics System (57 kVrms / 80 kVpeak)

HV coupling unit:

Input voltage: 57 kVrms / 80 kVpeak

Capacitance of coupling capacitor: 8 nF

PD measuring unit:

Power supply and data transmission Via Power Box (Power over Ethernet)

Signal gain: 0 – 75 dB

Ambient temperature (operational): -10°C to +50°C

Storage temperature: -20°C to +60°C

Relative humidity: Non-condensing

Dimensions (W x H x D): 410 x 593 x 369 mm

Including HF filter: 410 x 798 x 369 mm

Transport case 1: 800 x 581 x 482 mm

Transport case 2 (accessories): 627 x 497 x 303 mm

Weight: Approx. 21 kg

Including HF filter: Approx. 21.5 kg

Transport case 1: Approx. 42 kg

Transport case 2 (accessories): Approx. 22.5 kg

Degree of protection: IP54

Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU),

EMC Directive (2014/30/EU), EN 60068-2-ff Environmental testing

Partial discharge location

Theoretical measurement range: 10 – 12,800 m (at v/2 = 80 m/μs)

Velocity of propagation: 50 – 120 m/μs

Sampling rate: 100 MSamples/s (10 ns)

PD measurement range: 1 pC – 100 nC

Accuracy: Approx. 1% of cable length

Resolution: 0.1 pC / 0.1 m

Power Box

Input voltage: 90 – 264 V, 47 – 63 Hz

Power consumption: Max. 3500 VA

Maximum current: 16 A

PD-TaD interface: Ethernet (PoE)

Dimensions (W x H x D): 160 x 120 x 240 mm

Weight: Approx. 1.7 kg

Calibrator:

Electrical charge (pulses):

CAL1B: 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 nC

CAL1E: 0.5 / 1 / 2 / 5 / 10 / 20 / 50 nC

Power supply: 9 V block battery, DIN/IEC 6F22

Standard delivery

PD-TaD 62 or PD-TaD 80 portable PD diagnostics system

▪ Transport case 1

– HV coupling unit with integrated PD measuring unit

– HF filter

– Mounting brackets

▪ Transport case 2

– Power Box

– CAL1B or CAL1E calibrator

– HV connection set incl. adapters

– Connection cable set

– User manuals

▪ Laptop incl.

– pre-installed Windows operating system

– pre-installed BAUR Software 4 (cable testing, PD measurement)

– Carrying bag

Datasheet
