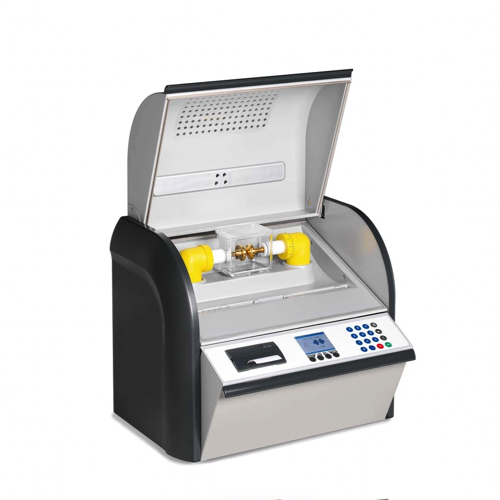

BAUR DTA 100 C Oil Breakdown Voltage Tester (0.5 - 10 kV/s)

General

Input Voltage: 90 – 264 V (50/60 Hz)

Power Consumption: Max. 70 VA

Display: Colour LCD (approx. 3.5”), screen resolution 320 x 240 pixels

Data Interface: USB 2.0 (type B plug), BAUR Report Manager external, USB interface (type A plug)

Printer: Matrix printer, 24 characters, 57 mm plain paper

Ambient Temperature (Operational): -10°C to +55°C

Storage Temperature: -20°C to +60°C

Humidity: Non-condensing

Dimensions (W x H x D): 545 x 458 x 380 mm (closed), 545 x 770 x 461 mm (open)

Weight: Approx. 39 kg

Degree of Protection: IP32

Safety and EMC: CE compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), Environmental testing EN 60068-2-ff

Software Available In: English, Chinese (CN), Chinese (TW), Czech, Dutch, French, German, Italian, Korean, Polish, Portuguese, Russian, Spanish, Turkish

Insulating oil testing

Output voltage: 0 - 100 kVrms symmetrical

Voltage slew rate: 0.5 - 10 kV/s

Switch-off time: < 10 μs

Voltage slew monitoring: Real Breakdown Monitoring (RBM)

Accuracy: 0 - 100 kV ± 1 kV

Resolution: 0.1 kV

Internal temperature recording of the oil sample: 0 - 99°C

Temperature resolution: 1°C

User-specific test sequences: 10

Standard delivery

▪ BAUR DTA 100 C oil breakdown voltage tester incl. integrated plain paper printer

▪ 1 x glass test vessel (test standard as selected)

▪ Magnetic stirrer

▪ Lifting stick for magnetic stirrer

▪ Setting gauge

▪ Mains supply cord

▪ User manual
