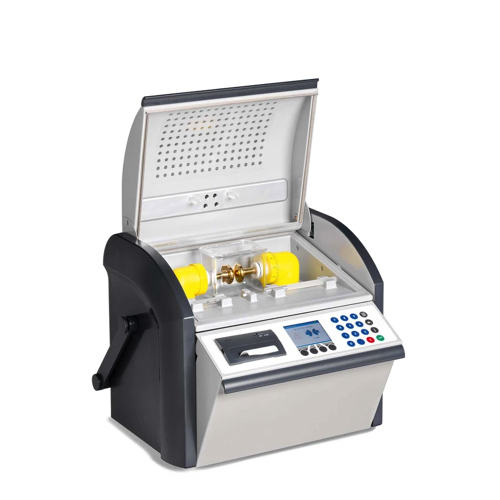

BAUR DPA 75 C Oil Breakdown Voltage Tester (0.5 – 10 kV/s)

General

Input voltage: 90 – 264 V (50/60 Hz) or DC 12 V

Power consumption: Max. 70 VA

Rechargeable battery: Lead-acid battery, 2 x 6 V / 6.5 Ah

Battery life: Approx. 8 hours (self-sufficient operation)

Display: Colour LCD (approx. 3.5”), screen resolution 320 x 240 pixels

Data interface

▪ USB 2.0 (type B plug)

▪ BAUR Report Manager external, USB interface (type A plug)

Printer: Matrix printer, 24 characters, 57 mm plain paper

Ambient temperature (operational): -10°C to +55°C

Storage temperature: -20°C to +60°C

Humidity: Non-condensing

Dimensions (W x H x D): 476 x 372 x 340 mm (closed) 476 x 635 x 420 mm (open)

Weight: Approx. 29 kg

Degree of protection: IP32

Safety and EMC: CE compliant in accordance with Low Voltage Directive (2014/35/EU), EMC Directive (2014/30/EU), Environmental testing EN 60068-2-ff

Software available in: English, Chinese (CN), Chinese (TW), Czech, Dutch, French, German, Italian, Korean, Polish, Portuguese, Russian,

Spanish, Turkish

Insulating oil testing

Output voltage: 0 - 75 kVrms symmetrical

Voltage slew rate: 0.5 – 10 kV/s

Switch-off time: < 10 μs

Voltage slew monitoring: Real Breakdown Monitoring (RBM)

Accuracy: 0 – 75 kV ±1 kV

Resolution: 0.1 kV

Internal temperature recording of the oil sample: 0 – 99°C

Temperature resolution: 1°C

User-specific test sequences: 10

Standard delivery

▪ DPA 75 C oil breakdown voltage tester

incl. integrated rechargeable battery and plain paper printer

▪ 1 x glass test vessel (test standard as selected)

▪ Magnetic stirrer

▪ Lifting stick for magnetic stirrer

▪ Setting gauge

▪ Carrying strap

▪ Mains supply cord

▪ User manual

Datasheet
