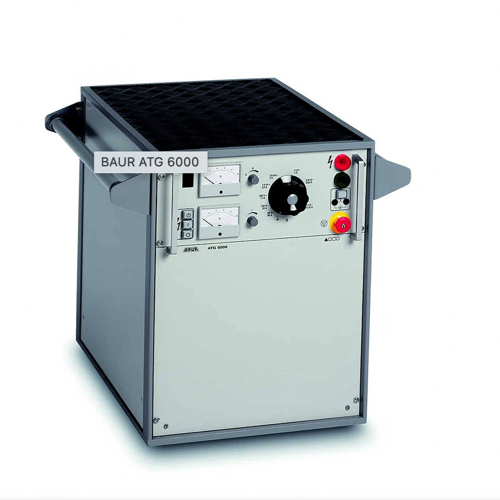

BAUR ATG 6000 Burn Down Transformer (200 – 260 V, 50/60 Hz)

Technical data

Power supply: 200 – 260 V, 50/60 Hz

Option: 100 – 130 V, 50/60 Hz with external autotransformer

Max. power consumption: 5750 VA (in short-circuit)

Output voltage DC: Max. 15 kV

Output current AC:

90 Arms at AC 60 V

23 Arms at AC 230 V

11 Arms at AC 500 V

3.5 Arms at AC 1500 V

2.0 Arms at AC 2600 V

Output current DC:

1.0 A at DC 5000 V

0.65 A at DC 8500 V

0.35 A at DC 15000 V

Load capacity: Max. 14 μF

Internal discharging resistance: 15 kOhm

Ambient temperature (operational): -20 °C to +55 °C

Storage temperature: -30 °C to +70 °C

Dimensions (W x H x D): 519 x 656 x 400 mm

Weight Approx.: 92 kg

Standard delivery includes:

▪ BAUR burn down transformer ATG 6000, including:

– HV connection cable, 4 m, fix mounted

– Mains supply cord, 5 m

– Earth cable, 4 m, with earthing clamp

– User manual
