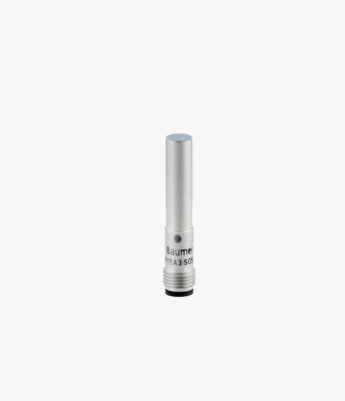

BAUMER IFRM 04P15A3/S05L Inductive Proximity Switch

General data

Mounting type: Flush

Nominal sensing distance Sn: 1 mm

Hysteresis: 2 … 20 % of Sr

Output indicator: 2 port LED red

Electrical data

Switching frequency: 5 kHz

Voltage supply range +Vs: 6 … 30 VDC

Current consumption max. (no load): 12 mA

Output circuit: PNP make function (NO)

Voltage drop Vd: <2 VDC

Output current: 200 mA

Short circuit protection: Yes

Reverse polarity protection: Yes

Mechanical data

Design: Cylindrical smooth

Material (sensing face): LCP

Housing material: Stainless steel

Dimension: 4 mm

Housing length: 24 mm

Connection types: Connector M5

Ambient conditions

Operating temperature: -25 … +75 °C

Protection class: IP 67
