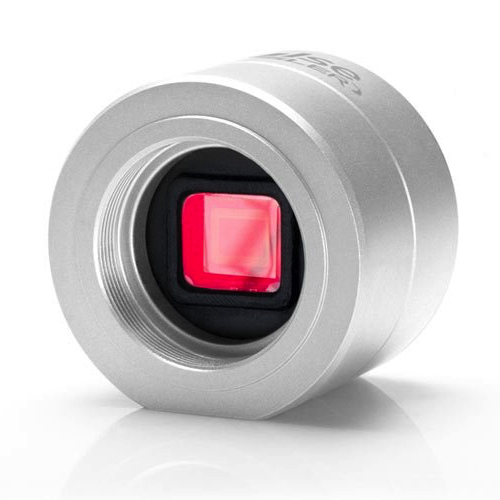

Basler puA1280-54uc Area Scan Camera (1280 x 960 px; onsemi AR0134)

Resolution (H x V Pixels): 1280 x 960

Resolution: 1.2 MP

Sensor Type: onsemi AR0134 / Progressive scan CMOS/ Global shutter

Sensor Format: 1/3 inch

Effective Sensor Diagonal: 6 mm

Pixel Size (H x V): 3.75 x 3.75 μm

Frame Rate (at Default Settings): 54 fps

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via software trigger Via free run

Exposure Time Control: Programmable via the camera API

Camera Power Requirements: ≈1.3 W (typical) @ 5 VDC

Lens Mount: CS-mount

Size (ø x L): 38.8 x 28.2 mm

Weight: <60 g
