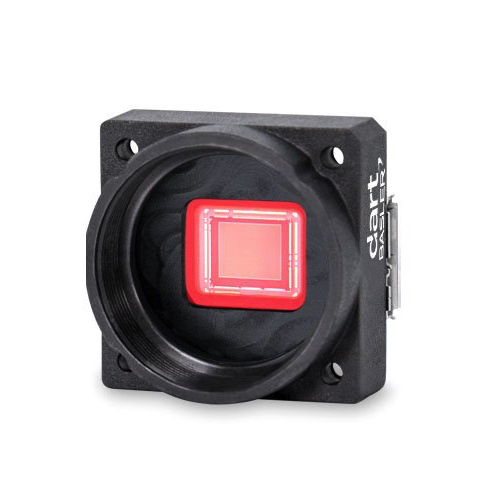

Basler daA2448-70uc - IMX548 CS-Mount Area Scan Camera (2472 x 2064 px; 2448 x 2048 px; Sony IMX548-AAQJ-C)

Resolution (H x V Pixels): 2472 x 2064 (full resolution) / 2448 x 2048 (default resolution)

Resolution: 5 MP

Sensor Type: Sony IMX548-AAQJ-C / Progressive scan CMOS / Global shutter

Sensor Format: 1/1.8 inch

Effective Sensor Diagonal: 8.8 mm

Pixel Size (H x V): 2.74 x 2.74 µm

Frame Rate (at Default Settings): 29.8 fps (default settings) / 72.8 fps (default settings, disabled Device Link Throughput Limit)

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Programmable via the camera API

Camera Power Requirements: ≈2 W (typical) @ 5 VDC

I/O Lines: 4 general purpose I/O (GPIO) lines

Lens Mount: CS-mount

Size (L x W x H): 20 x 29 x 29 mm

Weight: <15 g

Conformity: CE (includes RoHS), EAC, UL Listed, GenICam 2.x (including PFNC 1.x and SFNC 2.x), USB3 Vision, REACH, KC

Software: Basler pylon Camera Software Suite (version 6.0 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android
