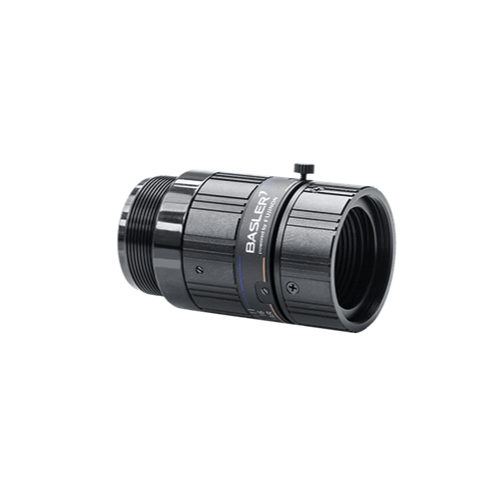

Basler C125-1620-5M F2.0 f16mm Lens camera (16 mm ± 5 %; F2.0–F22)

Focal Length f: 16 mm ± 5 %

Aperture Range: F2.0–F22

Image Circle: 7.3 mm (1/2.5")

Focus Range: 0.2 m to infinity

Optimum Working Distance: 0.5 m

Optimum Magnification: 0.031

Relative Illumination at Full Aperture: At least 55 %

Resolution (25 % MTF, Center, Full Aperture): Designed for 230 LP/mm

Resolution at 5.8 mm Image Diagonal: At least 50 % of resolution in image center

Optical Distortion: Typical -1 %

Angle of View, 1/2.5 inch Format (using a Basler acA2500-14gm/c camera or a Basler acA2500-14um/c camera): Horizontal: 19.5° (@ MOD) to 20.3° Vertical: 14.6° (@ MOD) to 15.3°

Angle of View, 1/3 inch Format (using a Basler acA1300-30gm/c camera or a Basler acA1300-30um/c camera): Horizontal: 16.6° (@ MOD) to 17.3° Vertical: 12.4° (@ MOD) to 12.9°

Wavelength Range: Visible (400–700 nm)

Pupil Magnification, ßP: 1.78

Chief Ray Angle, CRA: 7.3°

Front Focal Length, sF: 9.85 mm

Back Focal Length, sF: 15.96 mm

Principal Point Separation, HH: 4.84 mm

Entrance Pupil Position, sEP: 18.82 mm

Exit Pupil Position, sAP: -12.60 mm

Overall Optical Length, d: 30.74 mm

Flange Back: 17.526 mm +0/-0.2 mm

Mount: C-mount

Weight: Approx. 60 g

Focus/Iris Operation: Manual Operating angle: 960°
