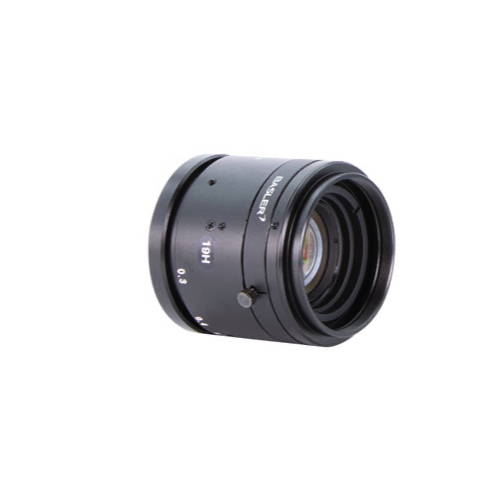

Basler C10-2514-3M Lens (25 mm ± 5 %; F1.4–F16)

Focal Length f: 25 mm ± 5 %

Aperture Range: F1.4–F16

Image Circle: 16 mm (1\

Focus Range: 0.3 m to infinity

Optimum Working Distance: 1.0 m

Relative Illumination at Full Aperture: 55 %

Resolution (25 % MTF, Center, Full Aperture): Designed for 100 LP/mm

Optical Distortion: Typical -3.14 %

Angle of View, 1 Format: Horizontal: 29.29° Vertical: 21.98°

Angle of View, 1/1.2 Format: Horizontal: 25.87° Vertical: 16.27°

Wavelength Range: Visible (400–700 nm)

Pupil Magnification, ßP: 42.25

Chief Ray Angle, CRA: 5.7°

Front Focal Length, sF: 5.88 mm

Back Focal Length, sF: 15.71 mm

Principal Point Separation, HH: -6.67 mm

Entrance Pupil Position, sEP: 18.26 mm

Overall Optical Length, d: 49.22 mm

Flange Back: 17.526 mm

Mount: C-mount

Weight: Approx. 150 g

Focus/Iris Operation: Manual operating angle: 147.024°
