Resolution (H x V Pixels): 832 x 632 (full resolution) 800 x 600 (default resolution)
Resolution: CCIR
Sensor Type: onsemi / PYTHON NOIP1SE0300A / Progressive scan CMOS / Global shutter
Sensor Format: 1/3.6 inch
Effective Sensor Diagonal: 4.8 mm
Pixel Size (H x V): 4.8 x 4.8 μm
Frame Rate (at Default Settings): 511 fps (at fast sensor readout mode and default resolution) / 393 fps (at normal sensor readout mode and default resolution)
Mono / Color: Mono
Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)
Synchronization: Via hardware trigger / Via software trigger / Via free run
Exposure Time Control: Via hardware trigger / Programmable via the camera API
Camera Power Requirements: ≈2.8 W (typical) @ 5 VDC / ≈3.1 W (max.)
I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 2 general purpose I/O (GPIO) lines
Lens Mount: C-mount
Size (L x W x H): 29.3 x 29 x 29 mm (without lens mount or connectors) 48.2 x 29 x 29 mm (with lens mount and connectors)
Weight: <80 g
Conformity: CE (includes RoHS), EAC, UL Listed, FCC, GenICam 2.x (including PFNC 2.x and SFNC 2.x), IP30, USB3 Vision, REACH, KC
Software: Basler pylon Camera Software Suite (version 4.0 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android

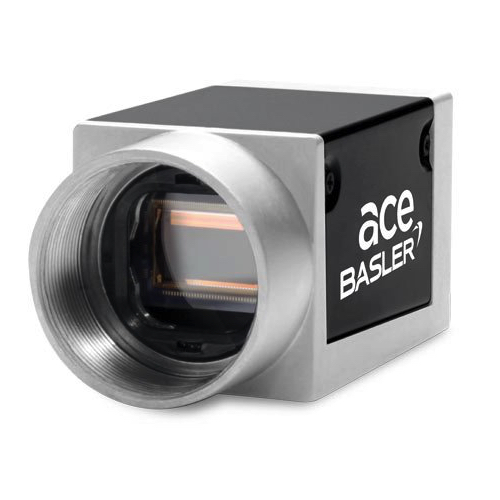

Product Line: ace U
