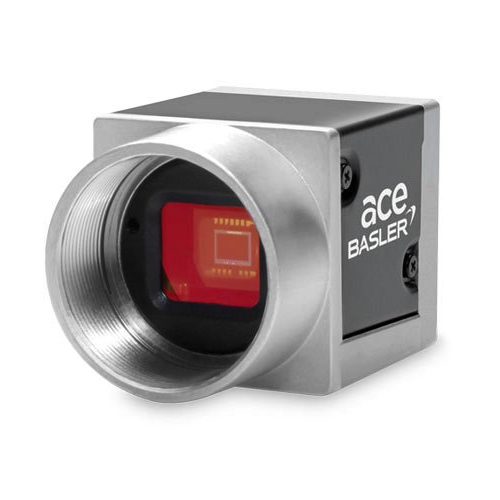

Basler Ace acA640-750uc Area Scan Camera (672 x 512 px; 640 x 480 px; onsemi / PYTHON NOIP1SE0300A)

Resolution (H x V Pixels): 672 x 512 (full resolution) 640 x 480 (default resolution)

Resolution: VGA

Sensor Type: onsemi / PYTHON NOIP1SE0300A / Progressive scan CMOS / Global shutter

Sensor Format: 1/4 inch

Effective Sensor Diagonal: 3.9 mm

Pixel Size (H x V): 4.8 x 4.8 μm

Frame Rate (at Default Settings): 751 fps (at fast sensor readout mode and default resolution) / 554 fps (at normal sensor readout mode and default resolution)

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger / Via software trigger / Via free run

Exposure Time Control: Via hardware trigger / Programmable via the camera API

Camera Power Requirements: ≈2.8 W (typical) @ 5 VDC / ≈3.1 W (max.)

I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 2 general purpose I/O (GPIO) lines

Lens Mount: C-mount

Size (L x W x H): 29.3 x 29 x 29 mm (without lens mount or connectors) 48.2 x 29 x 29 mm (with lens mount and connectors)

Weight: <80 g

Conformity: CE (includes RoHS), EAC, UL Listed, FCC, GenICam 2.x (including PFNC 2.x and SFNC 2.x), IP30, USB3 Vision, REACH, KC

Software: Basler pylon Camera Software Suite (version 4.0 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android

Product Line: ace U
