Resolution (H x V Pixels): 4112 x 3008 (full resolution) / 4096 x 3000 (default resolution) / You can change the resolution by changing the image ROI.
Resolution: 12.3 MP
Sensor Type: Sony IMX304LQR / Progressive scan CMOS / Global shutter
Sensor Format: 1.1 inch
Effective Sensor Diagonal: 17.6 mm
Pixel Size (H x V): 3.45 x 3.45 μm
Frame Rate (at Default Settings): 23.4 fps
Mono / Color: Color
Image Data Interface: Fast Ethernet (100 Mbit/s) Gigabit Ethernet (1000 Mbit/s)
Synchronization: Via hardware trigger / Via software trigger / Via free run
Exposure Time Control: Via hardware trigger / Programmable via the camera API
Camera Power Requirements: 3.2 W (typical) @ 5 VDC
I/O Lines: 1 opto-coupled input line / 1 opto-coupled output line / 2 general purpose I/O (GPIO) lines
Lens Mount: C-mount
Size (L x W x H): 35.8 x 40 x 30 mm (without lens mount or connectors) / 48.2 x 40 x 30 mm (with lens mount and connectors)
Weight: <80 g
Conformity: CE (includes RoHS), EAC, UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH, KC
Software: Basler pylon Camera Software Suite (version 4.0 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android

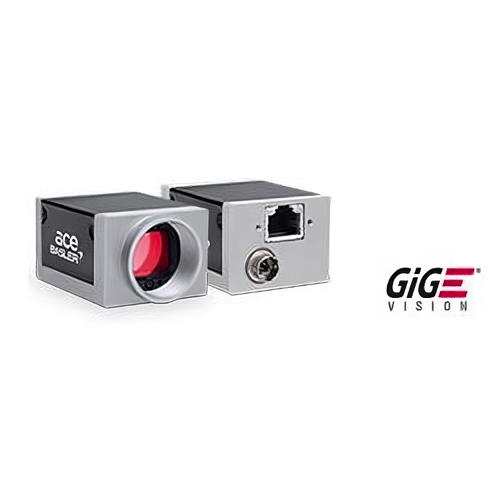

Product Line: ace L
