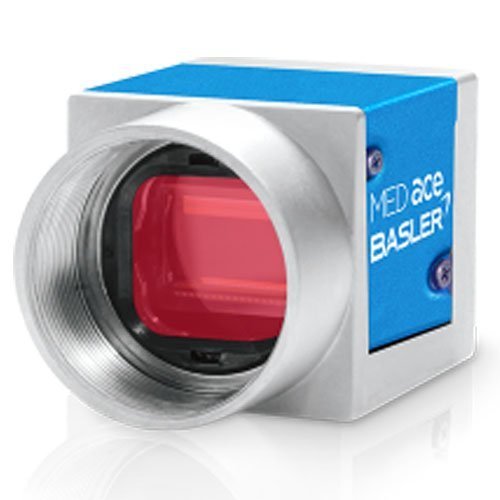

Basler acA2440-75ucMED Area Scan Camera (2464 x 2056 px; 2448 x 2048 px; Sony IMX250LQR-C)

Resolution (H x V Pixels): 2464 x 2056 (full resolution)/2448 x 2048 (default resolution)

Resolution: 5.0 MP

Sensor Type: Sony IMX250LQR-C Progressive scan CMOS

Sensor Format: 2/3 inch

Effective Sensor Diagonal: 11.1 mm

Pixel Size (H x V): 3.45 x 3.45 µm

Frame Rate (at Default Settings): 75 fps

Mono / Color: Color

Image Data Interface: USB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Synchronization: Via hardware trigger, Via software trigger, Via free run

Exposure Time Control: Via hardware trigger, Programmable via the camera API

Camera Power Requirements: ≈3.4 W (typical) @ 5 VDC (minimum 4.5 VDC)

Lens Mount: C-mount

Size (ø x L): 29.3 x 29 x 29 mm (without lens mount or connectors)/ 48.2 x 29 x 29 mm (with lens mount and connectors)

Weight: <80 g
