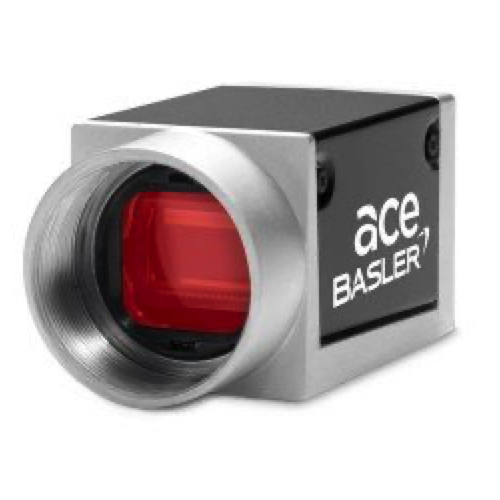

Basler acA2040-180kc - CMV4000 Area Scan Camera (2046x2046 px; CMV4000; Color)

Resolution (H x V Pixels): 2046x2046

Resolution: 4 MP

Sensor Type: CMV4000 / Progressive scan CMOS / Global shutter

Sensor Format: 1 inch

Pixel Size (H x V): 5.5 µm x 5.5 µm

Frame Rate (at Default Settings): 180 fps

Mono / Color: Color

Image Data Interface: Camera Link

Synchronization: Via hardware trigger / Via software trigger / Via free run

Camera Power Requirements: ≈3.0 W (typical)

I/O Lines: 1 opto-coupled input line / 2 general purpose I/O (GPIO) lines

Lens Mount: C-mount

Size (L x W x H): 43.5 mm x 29 mm x 29 mm

Weight: <100g

Conformity: CE, RoHS, GenICam, IP30, FCC, Camera Link, KC, EAC

Software: Basler pylon Camera Software Suite (version 6.0 or higher) Available for Windows, Linux x86, Linux ARM, macOS, and Android

Exposure Control: Trigger width or timed
