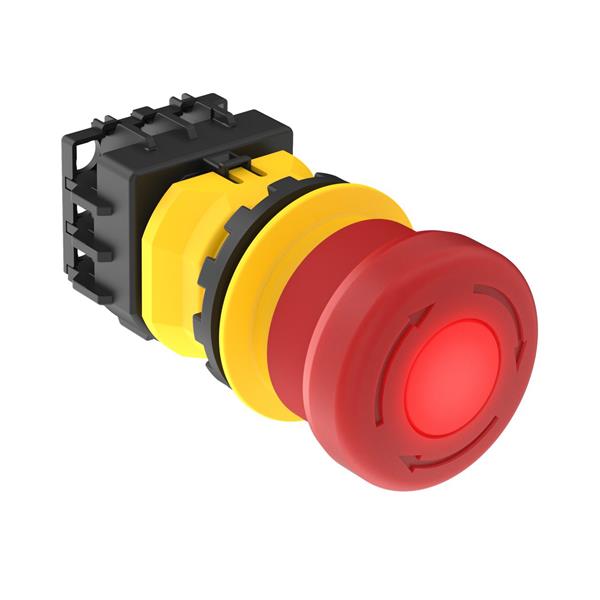

Banner Engineering SSA-EB1PL1-04 Push Turn SSA-EB1 Panel-mount Emergency Stop Push Button; Illuminated 40 mm Actuator; Contacts: 4NC; Screw Terminals; 30 mm mounting hole

Life: 250000 Cycle

Width: 37 mm

Height: 80.7 mm

Actuator: Round

IP Rating: IP65

Lamp Type: LED

Button Size: 40 mm

Illuminated: Illuminated

Unit Weight: 49.895 g

Contact Form: 4PST

Panel Cutout: 30.5 mm

Actuator Style: Button

Current Rating: 5 A

Mounting Style: Panel Mount

Panel Thickness: 1 mm to 5 mm

Switch Function: ON - OFF

Housing Material: Polycarbonate (PC)

Actuator Material: Thermoplastic (TP)

Termination Style: Screw

Illumination Color: Red

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 25 C
