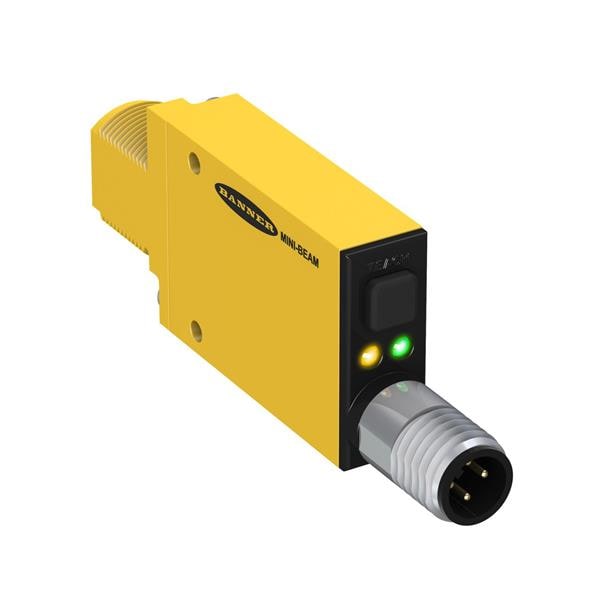

Banner Engineering SME312CVB Photoelectric Sensors MINI-BEAM EXPERT: Visible Blue 475 nm Convergent; Focal Point: 16 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 2 m (6.5 ft) Cable

Width: 53.3 mm

Height: 30.7 mm

Length: 12.2 mm

IP Rating: IP67

Unit Weight: 200.488 g

Light Source: Visible Blue LED

Amplifier Type: Photoelectric

Sensing Method: Convergent

Sensing Distance: 16 mm

Connection Method: Cable

Output Configuration: NPN, PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
