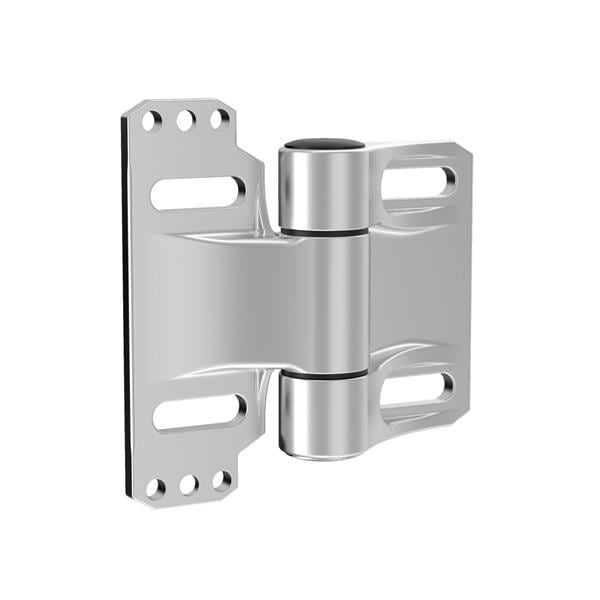

Banner Engineering SI-HG63A Hinge Wing Safety Interlocks Hinge - Blank: SI-HG63 Family; Stainless Steel; See SI-HGZ63 A Die-cast Zinc as a lower cost alternate

Life: 2000000 Cycle

Width: 82 mm

Height: 147 mm

Length: 19.5 mm

Actuator: Hinge

IP Rating: IP67, IP69

Illuminated: Non-Illuminated

Unit Weight: 294.835 g

Actuator Style: Contact

Current Rating: 3 A, 1 A

Mounting Style: Panel

Operating Force: 1800 N

Housing Material: Stainless Steel

Termination Style: Screw

Voltage Rating AC: 230 VAC

Voltage Rating DC: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
