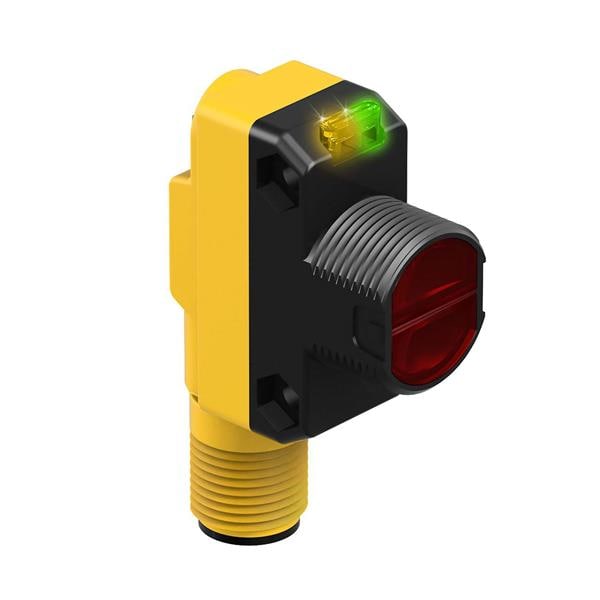

Banner Engineering QS18VP6FF50Q8 Photoelectric Sensors WORLD-BEAM QS18 Series: Fixed-Field; Range: 50 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 4-pin M12 Integral QD

Width: 15 mm

Height: 36 mm

Length: 31 mm

IP Rating: IP67

Light Source: Visible Red LED

Amplifier Type: Photoelectric

Sensing Method: Fixed-Field

Sensing Distance: 50 mm

Connection Method: 4-Pin M12

Output Configuration: PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
