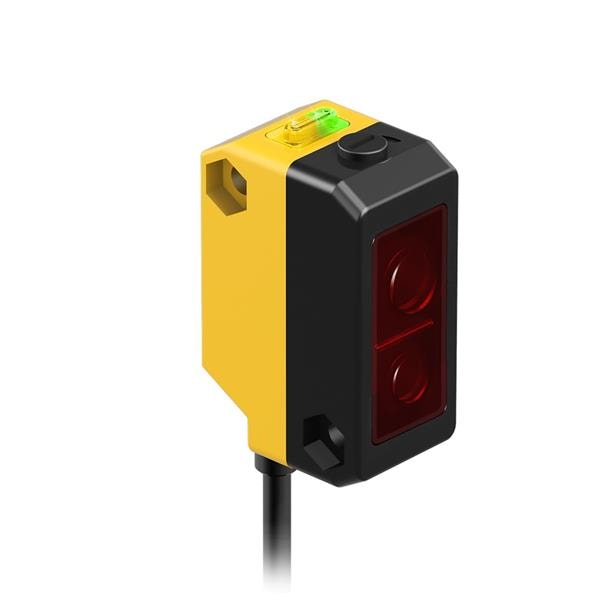

Banner Engineering QS18VN6AF100 Photoelectric Sensors WORLD-BEAM: Adjustable Field; Range: 1-100 mm Adj Cutoff: 20-100 mm; Input: 10-30 V dc; Outputs: Complementary NPN; 2 m (6.5 ft) Cable

Width: 21 mm

Height: 34.5 mm

Length: 15 mm

IP Rating: IP67

Light Source: Visible Red LED

Amplifier Type: Photoelectric

Sensing Method: Background Suppression

Sensing Distance: 100 mm

Connection Method: Cable

Output Configuration: NPN

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 10 C
