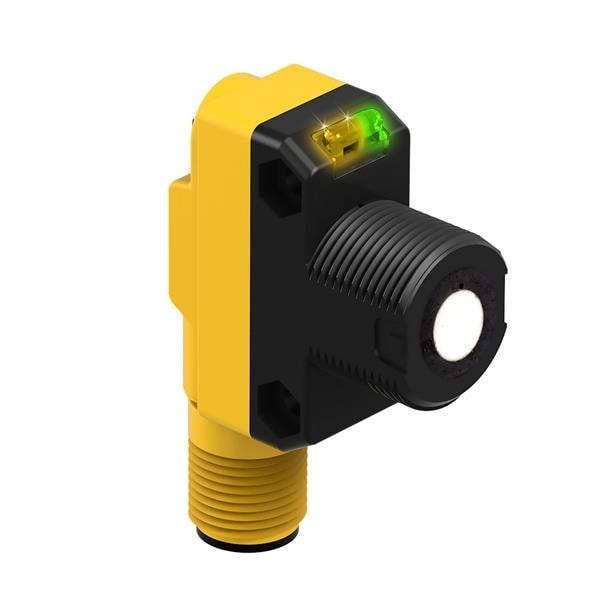

Banner Engineering QS18UPAEQ8 Photoelectric Sensors WORLD-BEAM QS18U: Ultrasonic remote TEACH; Range: 50-500 mm; Input: 12-30 V dc; Output: PNP; Epoxy-encapsulated; 4-pin M12 Integral QD

Width: 33.5 mm

Height: 49 mm

Length: 15 mm

IP Rating: IP68

Unit Weight: 53.524 g

Sensing Distance: 50 mm to 500 mm

Connection Method: 4-Pin M12 Euro-Style

Output Configuration: PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 12 VDC

Operating Supply Voltage: 12 VDC to 30 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C
