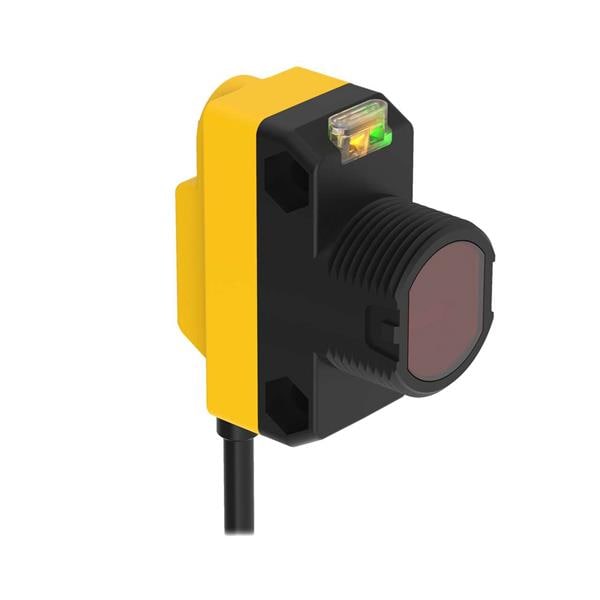

Banner Engineering QS18K6AF250Q7 Photoelectric Sensors WORLD-BEAM: Adjustable Field; Range: 250 mm; Input: 10-30 V dc; Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN ; M8 Integral QD

Width: 31 mm

Height: 41.5 mm

Length: 15 mm

IP Rating: IP67

Unit Weight: 226.796 mg

Light Source: Visible Red LED

Amplifier Type: Photoelectric

Sensing Method: Background Suppression

Sensing Distance: 250 mm

Connection Method: 4-Pin M8

Output Configuration: NPN, PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 40 C
