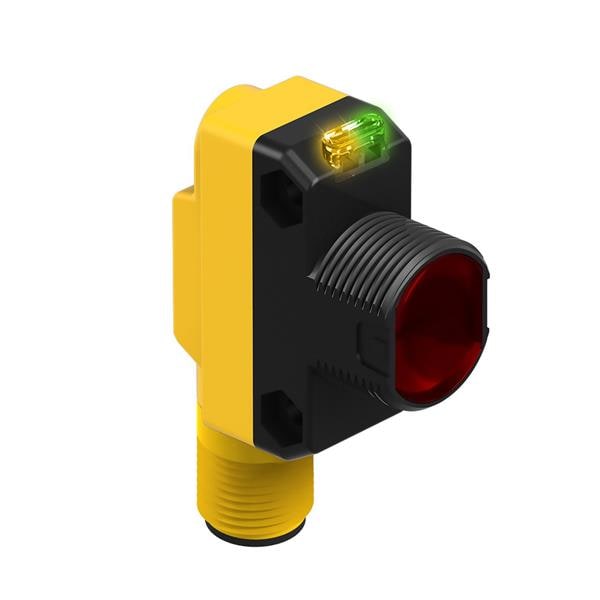

Banner Engineering QS18EK6RQ8 Photoelectric Sensors WORLD-BEAM QS18 Series: Receiver; Range: 20 m; Input: 10-30 V dc; Output 1: Push/Pull with IO-Link; Output 2: Configurable PNP/NPN; M12 Integral QD

IP Rating: IP65, IP67

Unit Weight: 49.895 g

Light Source: Infrared

Amplifier Type: Photoelectric

Sensing Method: Opposed Receiver

Sensing Distance: 1 m to 20 m, 0 m to 4 m

Connection Method: 4-Pin M8 Pico

Output Configuration: NPN, PNP

Supply Voltage - Max: 30 VDC

Supply Voltage - Min: 10 VDC

Operating Supply Voltage: 10 VDC to 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
