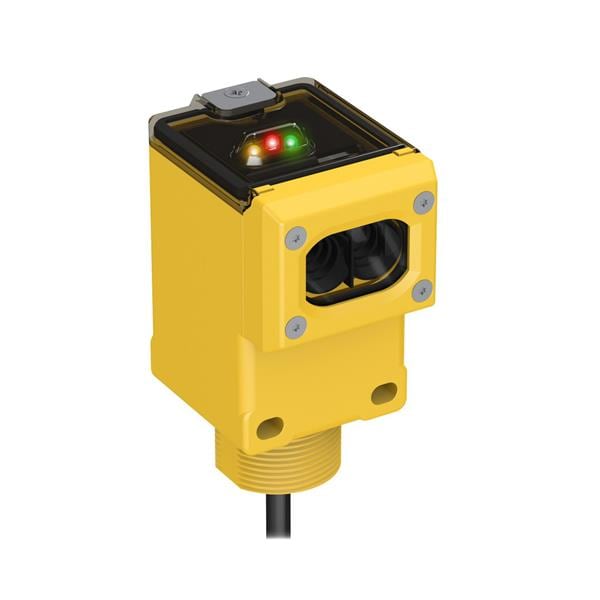

Banner Engineering Q45BW22D Photoelectric Sensors Q45 Series: Diffuse; Range: 450 mm; Input: 90-250 V ac; Output: SPST Solid-state Relay; 2 m (6.5 ft) cable

Width: 54.1 mm

Height: 87.6 mm

Length: 44.5 mm

IP Rating: IP67

Unit Weight: 332.029 g

Light Source: Infrared

Amplifier Type: Photoelectric

Sensing Method: Diffuse Reflective

Sensing Distance: 45 cm

Connection Method: Cable

Output Configuration: Solid-State Relay

Supply Voltage - Max: 250 VAC

Supply Voltage - Min: 90 VAC

Operating Supply Voltage: 90 VAC to 250 VAC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
