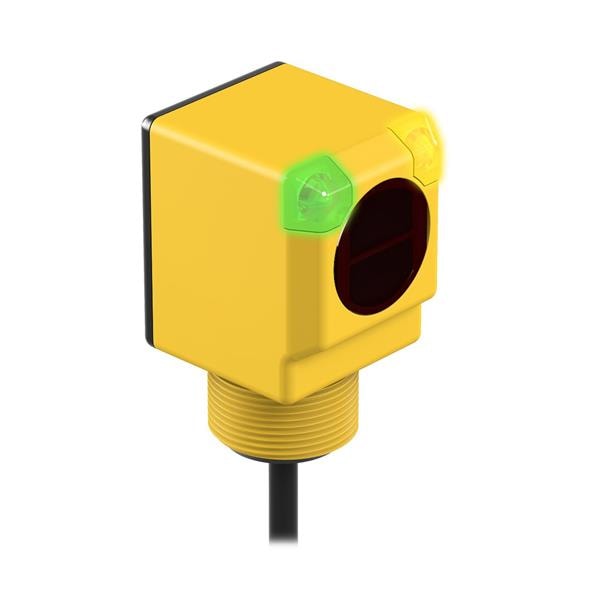

Banner Engineering Q40AW3FF200 Photoelectric Sensors EZ-BEAM Q40 Series: Fixed Field; Range: 200 mm; Input: 20-250 V ac; Output: SPST Solid-state Light Operate; 2 m (6.5 ft) Cable

Width: 46 mm

Height: 50 mm

Length: 40.1 mm

IP Rating: IP69K

Unit Weight: 252.152 g

Light Source: Infrared

Amplifier Type: Photoelectric

Sensing Method: Fixed-Field

Sensing Distance: 200 mm

Connection Method: Cable

Output Configuration: Solid-State Relay

Supply Voltage - Max: 250 VAC

Supply Voltage - Min: 20 VAC

Operating Supply Voltage: 20 VAC to 250 VAC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
