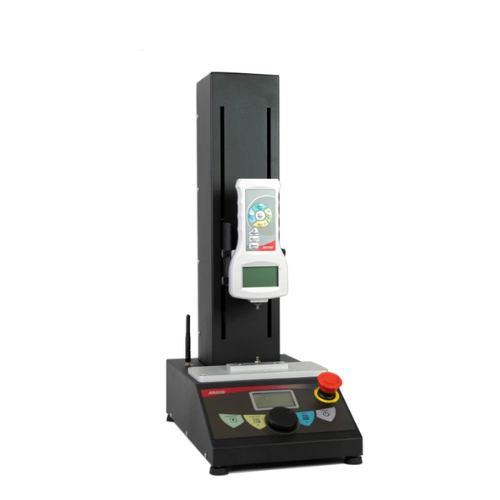

AXIS STAV500/500 Motorized vertical test stand (500N, 500mm)

Max force:500N

Max motion:500mm

Max motion speed:300mm/min

Maximum column deviation under load:1.3mm

Motion precision:+/- 1.2mm

Motion resolution:0.01mm

Program memory:10

Maximal number of cycles in one program:10000

Maximal number of steps in one cycle:8

Working temperature:-10 ÷ +40°C

Interfaces:wireless module, RS232C, USB

Display:LCD graphical

Supply:~230V 50Hz 100VA / 24V 4A

Dimensions: 238x407x880mm

Weight:26kg

STAV500 vertical test stand with electric drive is designed for FB50, FB200, FB500, FC50, FC200 and FC500 force gauges.

Force up to 500N and travel 500mm.

Thanks to precise programming motion mechanism STAV500 enables to perform precise measurements during e.g. material resistance testing.

STAV500 optionally can be equipped with wireless module for communication with force gauge.
