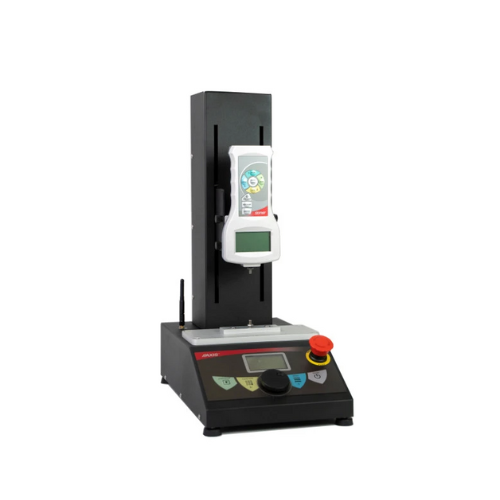

AXIS STAV500/300 Motorized vertical test stand (500N, 300mm)

Max force:500N

Max motion:300mm

Max motion speed:300mm/min

Maximum column deviation under load:1.3mm

Motion precision:+/- 1.2mm

Max force:500N

Max motion:300mm

Max motion speed:300mm/min

Maximum column deviation under load:1.3mm

Motion precision:+/- 1.2mm

Motion resolution:0.01mm

Program memory:10

Maximal number of cycles in one program:10000

Maximal number of steps in one cycle:8

Working temperature:-10 ÷ +40°C

Interfaces:wireless module, RS232C, USB

Display:LCD graphical

Supply:~230V 50Hz 100VA / 24V 4A

Dimensions: 238x407x680mm

Weight: 22.5kg

STAV500 vertical test stand with electric drive is designed for FB50, FB200, FB500, FC50, FC200, and FC500 force gauges.

Force up to 500N and travel 300mm.

Thanks to the precise programming motion mechanism STAV500 enables to perform of precise measurements during e.g. material resistance testing.

STAV500 optionally can be equipped with a Bluetooth module for wireless communication with a force gauge.
