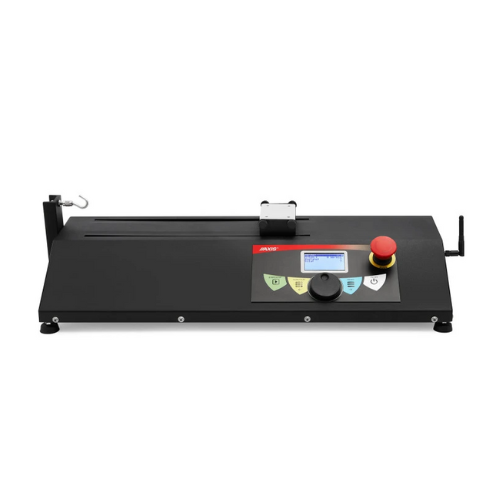

AXIS STAH500/300 Motorized horizontal test stand (500N)

Maximum force measured:500N

Interfaces:Wireless Module, RS232C, USB

Working temperature:-10 ÷ +40°C

Dimensions:718x250x180mm (With dynamometer)

Power supply:~230V 50Hz 100VA/ 24V 4A

Display:LCD graphical

Balance weight:22.5 kg

Stroke:300mm

Maximal speed:300mm/min

Shift resolution:0.01mm

Shift accuracy:+/- 1.2mm

Minimal speed:10mm/min

Maximum deflection of the column under load:1.3mm

Motion programmes memory:10

Maximum number of motion cycles:10000

Maximal steps quantity in one cycle:8

The STAH horizontal tripod with electric drive is designed for FB50, FB200, FB500, FC50, FC200, and FC500 force gauges.
