Maximum force measured: 50Nm (~5kgfm)
Reading graduation: 0.01Nm
Accuracy: ±0.5% F.S.
Maximum overload: 150% F.S.
Operational temperature: -10 ÷ +40°C
Units: Nm, Ncm, kgfm, lbfin, gfm
Display: grafical LCD
Measurement speed: max 1000 measurements/s
Measuring functions: maximal value measurement, serial measurement, measurement in time
Measurements memory: RAM 6 400 measurements, microSD card slot; only FC: optional RAM memory expansion to 72000 measurements or 26000 with date+time
Interfaces: RS232C, USB, clock; options: trigger IN, transoptor OUT (for thr function), wireless modul
Software: AXIS FM program
Power supply: internal accumulators NiMH: 4x1.2V 2700mAh + supply: ~230V 50Hz / 12V; 1.2A
Working time with accumulator: ~30h (~25h with backlighting)
Wrench size: 3/8”
Dimensions:
215x98x46 (meter)
104x70x74mm (sensor)
Weigh: 0.6kg(meter) + 1.5kg(sensor)

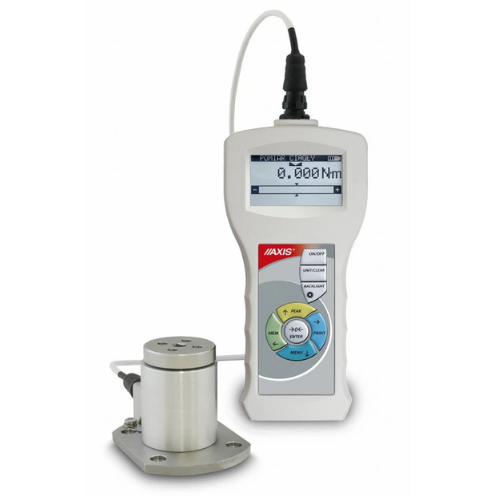

FSC series torque testers are designed to control/test tension wrenches. It is possible to register maximal torque or real-time registering of changing torque.
Measurement head is mounted to control desk and the controled tension wrench is fitted to 1/4'' hole (FSC2, FSC5, FSC10) or 3/8" hole (FSC100) situated on the measurement head.
Measurement head in FSC500 model doesn't have adapter for tension wrench. FSC500 set is equipped only with force sensor.
Special functions:
- peak value measurement
- threshold comparision
- statistics
- measurement unit selection
