Maximum force measured: 2Nm (~0.2kgfm)
Reading graduation: 0.001Nm
Accuracy: ±0.5% F.S.
Maximum overload: 150% F.S.
Operational temperature: -10 ÷ +40°C
Units: Nm, Ncm, kgfm, lbfin, gfm
Display: grafical LCD
Measurement speed: max 1000 measurements/s
Measuring functions: maximal value measurement, serial measurement, measurement in time
Measurements memory: RAM 6 400 measurements, microSD card slot; only FC: optional RAM memory expansion to 72000 measurements or 26000 with date+time
Interfaces: RS232C, USB, clock; options: trigger IN, transoptor OUT (for thr function), wireless modul
Software: AXIS FM program
Power supply: internal accumulators NiMH: 4x1.2V 2700mAh + supply: ~230V 50Hz / 12V; 1.2A
Working time with accumulator: ~30h (~25h with backlighting)
Range of diameters: Ø0÷14mm
Dimension: 212x98x41mm (meter) + Ø50x185mm (sensor)
Weight: 0.6g (meter) + 0.9kg (sensor)

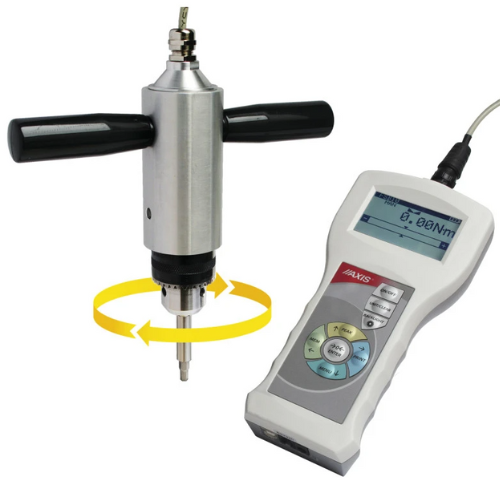

FSB series torque testers are designed to measure torque during unscrewing/tighten screws, nuts etc.
It is possible to register maximal torque or real-time registering of changing torque. FSB torque testers are equipped with universal grip that enables to mount test piece or screwdriver bits (maximal diameter 13mm). The measuring head is equipped with torque sensor. It can be held by one or two hands (additional two-hand grip for bigger forces). Manual rotating of the measuring head creates measured torque. Torque tester can register maximal force during usncrewing or tightening.
Special functions:
- peak value measurement
- threshold comparision
- statistics
- measurement unit selection
Measuring head dimension
