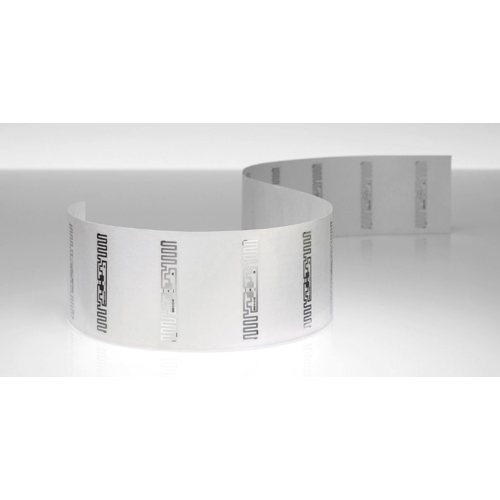

Avery Dennison AD-130u8 - RF100741 UHF RFID Tag And Inlay (38.1 mm / 1.5 in; TBD MAX OD: 203.2 mm / 8 in)

Chip: NXP UCODE 8

EPC and User Memory: 128-bit and n/a

Frequency Band: UHF 860 - 960 MHz

Antenna Dimensions: 45 x 7.5 mm / 1.772 x 0.295 in

TID Memory: 96-bit / 48-bit unique serial number

Die-Cut Dimension: 47 x 9.5 mm /1.85 x 0.374 in

Inlay Substrate: Clear PET

Face Sheet: TT2C (FASSON®) Bright White

Total Thickness: 15 - 17 mils / 381 - 432 microns

Standard Pitch: 38.1 mm / 1.5 in

Web Width: 50.8 mm / 2.0 in

Core Size: 76.2 mm / 3 in

Quantity / Reel: TBD MAX OD: 203.2 mm / 8 in

Operating Temperature: -40 °C to 85 °C / -40 °F to 185 °F
