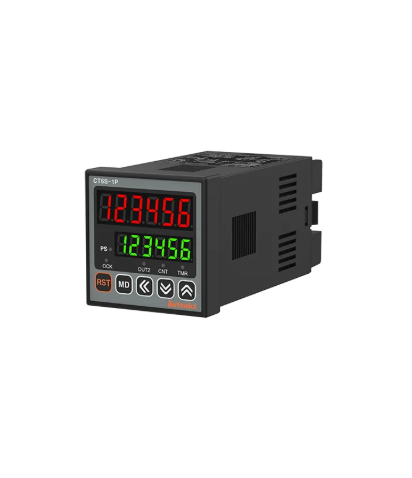

Type: Counter, Timer
Setting Type: 1-stage setting
Counting Function / Configuration: Preset counter, Timer
Operating Modes: Down, Up, Up/Down
Display Type: LED
Number of Display Digits: 6 digits
Character Height (measured value): 10 mm
Character Height (set value): 7 mm
Power Supply Voltage: 24VAC, 24...48VDC
Number of Inputs: 2 inputs
Input Type: Contact, NPN, PNP
Input Functions: Count, Start, Inhibit (Gate/Hold), Reset
Number of Control Outputs: 1 output
Output Type: Relay output, Transistor output
Control Output Configuration: SPDT, NPN
Output Capacity (resistive load):
0.1A at 30VDC
5A at 250VAC
5A at 30VDC
Output Signal Duration: 0.01...99.99 seconds
Maximum Counting Speed: 1Hz, 30Hz, 300Hz, 1kHz, 5kHz
Auxiliary Power Supply: 12VDC – 100mA
Wiring Method: Screw terminals
Mounting Method: Flush mounting
Panel Cutout Size: W45 × H45 mm
Operating Environment: Standard-compliant
Ambient Temperature: -10 to 55°C
Ambient Humidity: 35 to 85%
Weight: Approx. 212g
Overall Dimensions:
Width: 48 mm
Height: 48 mm
Depth: 100 mm
Protection Rating: IP65
